Xylon D10 Pro
AI Conferencing Bar
The Xylon D10 Pro is an all-in-one AI conferencing bar engineered for professional meeting rooms, hybrid collaboration, and high-impact AV spaces. With dual 4K camera systems, integrated Linux-based processing, and immersive audio components, it offers a seamless video conferencing experience out of the box—no external peripherals required.
- Dual 4K Camera System: Equipped with a PTZ optical zoom lens (10x) and a wide-angle panoramic lens (121°), enabling complete room coverage and automatic speaker tracking via AI.
- Smart AI Framing & Detection: Leverages advanced face and voice detection to automatically frame active participants—perfect for dynamic, multi-user meetings.
- Embedded Operating System: Powered by a secure, embedded Linux platform, the D10 Pro delivers uninterrupted performance, screen casting, and smart control across devices.
Designed for executive boardrooms, huddle rooms, and hybrid collaboration spaces, the Xylon D10 Pro combines intelligent video, audio, and control technologies into one sleek device—redefining how teams connect and communicate.
Product Features
- AI-powered 4K conferencing bar with integrated Linux system for stable, always-on performance.
- Dual camera setup featuring a 10x optical zoom PTZ lens and a 121° ultra-wide panoramic ePTZ camera.
- Delivers 4K UHD video output via dual HDMI 2.0 ports, supporting up to 4K@60Hz resolution.
- Multi-display support for up to 9 screens simultaneously, ideal for matrix-based AV installations.
- AI-based smart framing detects and tracks speakers using voice and facial recognition.
- Wireless and wired BYOM/BYOD with USB-C, HDMI, and dual-band Wi-Fi screen casting support.
- 8-element MEMS microphone array with 6-meter pickup range and advanced echo/noise suppression.
- Built-in 2×5W stereo speakers delivering high-fidelity audio for immersive conferencing experiences.
- Remote-controlled PTZ with up to 256 programmable camera presets for quick framing adjustments.
- Supports flexible mounting options—wall, tabletop, or display-mounted—with included accessories.
- Comprehensive connectivity including dual HDMI input/output, USB-A/USB-C, PoE LAN, and audio I/O ports.
- Compact form factor with professional-grade AI and AV performance for modern hybrid meeting rooms.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | Xylon D10 Pro AI Conferencing Bar |
| Operating System | Android (Estimated Version 9+) |
| Image Sensor (Main Camera) | 1/2.8-inch high-quality CMOS sensor |
| Focal Length (Main Camera) | 4.32 mm to 40.9 mm |
| Pan Rotation | Horizontal ±25° |
| Tilt Rotation | Vertical ±15° |
| Image Sensor (Wide-Angle) | 1/2.8-inch advanced CMOS sensor |
| Effective Pixels (Main Camera) | 8MP |
| Field of View (Main Camera) | 70° Horizontal |
| Zoom (Main Camera) | 10x Optical Zoom |
| Output Signal Type | 1 × HDMI 2.0, Max 4K60 |
| Product Type | Integrated Android-Based Video Bar |
| Effective Pixels (Wide-Angle) | 8MP |
| Field of View (Wide-Angle) | 121° HFoV |
| Zoom (Wide-Angle) | 4x Digital Zoom (ePTZ) |
| Microphone Pickup Range | Up to 6 meters |
| Video Resolution | 4K/30fps, Full HD, HD |
| Video Compression | MJPEG / H.264 / H.265 |
| Microphone Type | 8-element MEMS array |
| Audio Features | AGC, Echo Cancellation, Noise Suppression |
| Speaker Power | 2 × 5W |
| AI Features | AI-powered framing and speaker detection |
| BYOD/BYOM Support | USB-C supported |
| USB Ports | USB-C, USB-A 3.0, 3 × USB-A 2.0 |
| HDMI Ports | 2 × HDMI outputs, dual HDMI inputs |
| Speaker Type | Integrated Hi-Fi speakers |
| LAN Ports | Dual PoE LAN + Gigabit Ethernet |
| Audio Interfaces | 3.5 mm line-in and line-out |
| Control Interfaces | RS232 COM port, system reset |
| Mounting Options | Tabletop, wall, top/bottom display |
| Optional Accessories | External mic/speakerphone |
| Dimensions (W × D × H) | 840 mm × 100 mm × 50 mm |
| Weight | Approx. 1.5–2.0 kg |
| Operating Voltage | 54V DC, 2.22A |
| Operating Temperature | 0°C to +40°C |
| Certifications | CE, FCC, RoHS, BIS Certified |
Product Dimension
Resources & Manuals
Software & Downloads
Coming Soon
All-in-One AI Conference Bar for Hybrid Collaboration
The Xylon D10 Pro delivers an advanced conferencing experience with AI-powered video framing, dual 4K camera coverage, and integrated stereo audio—all in a single compact device. Whether you're leading virtual meetings or presenting across multiple screens, it offers seamless BYOD/BYOM support, intelligent speaker tracking, and 6-meter voice pickup. Perfect for modern boardrooms, huddle spaces, and hybrid setups, the D10 Pro ensures crystal-clear communication and effortless setup—no extra gear required.
Main Features

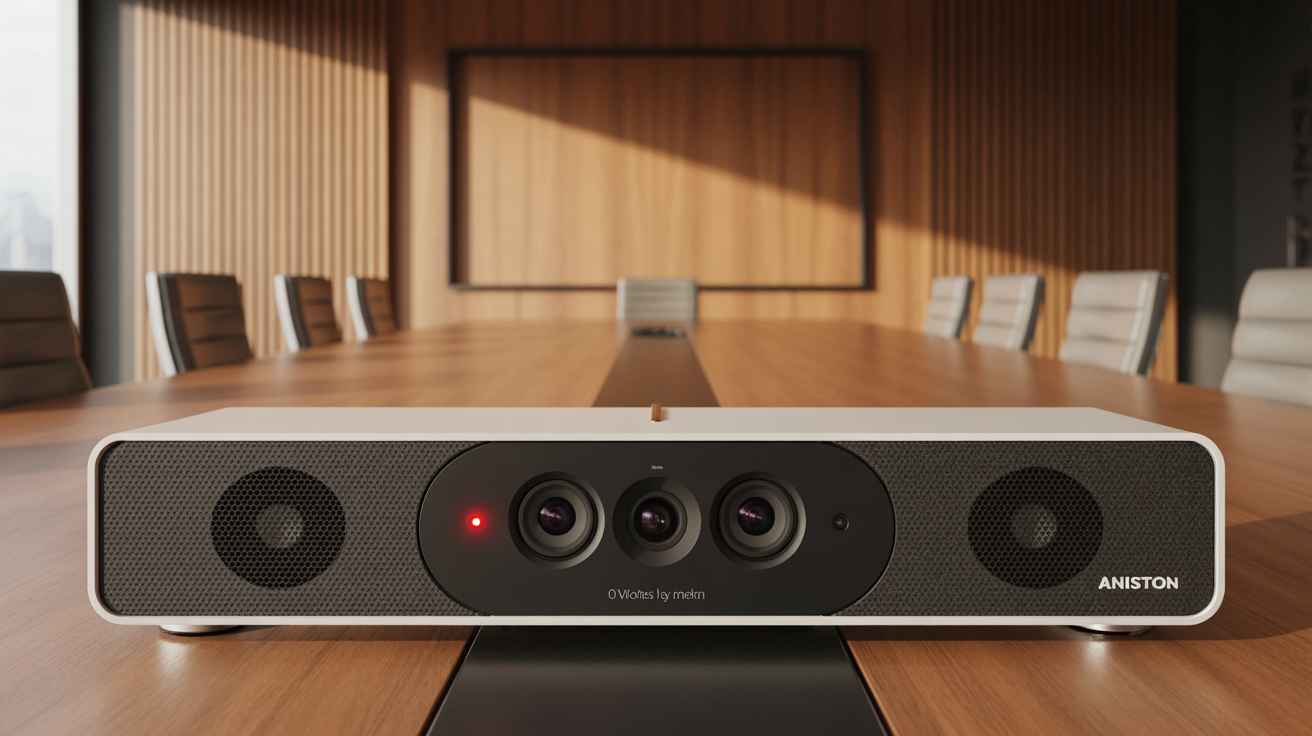

Dual 4K Camera System with Smart Framing
The Xylon D10 Pro combines a 10x optical PTZ camera with a 121° wide-angle panoramic lens, enabling complete room coverage and AI-powered framing that automatically focuses on active participants during meetings.

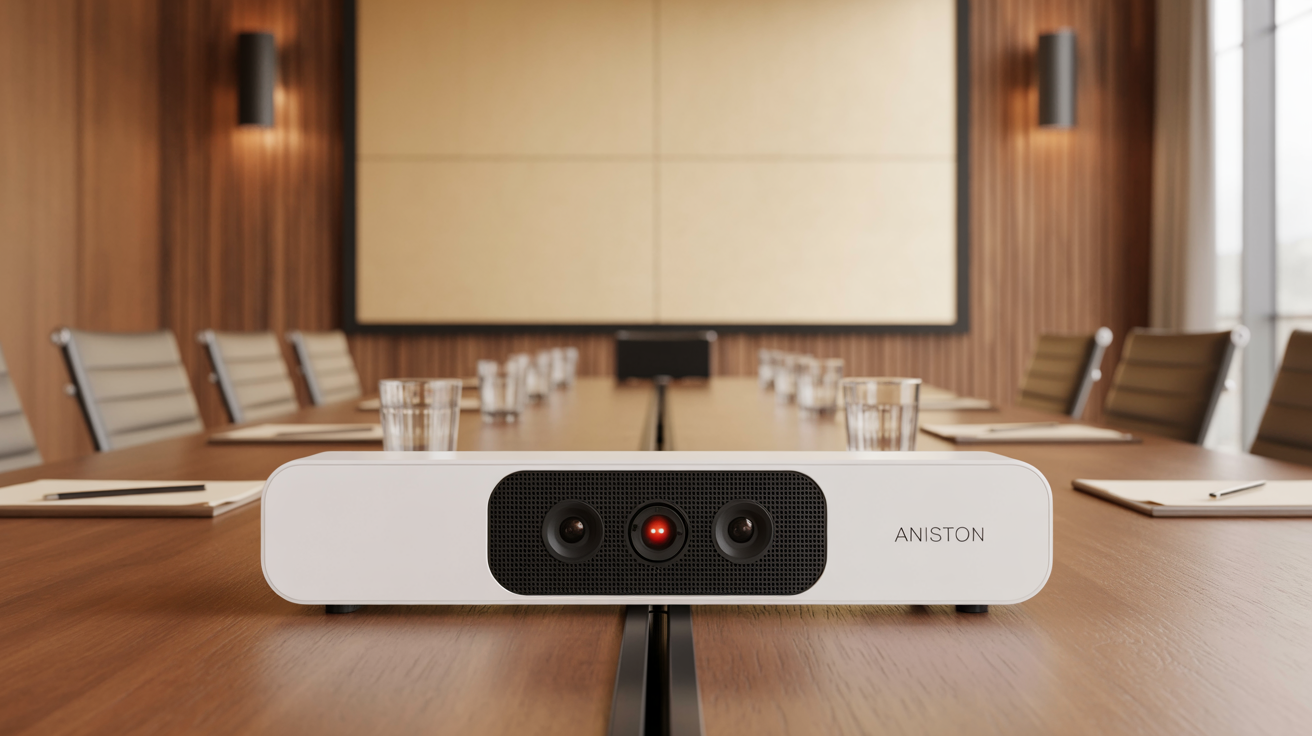

Integrated Microphone and Hi-Fi Audio System
Equipped with an 8-mic MEMS array and dual 5W stereo speakers, the D10 Pro ensures crystal-clear voice capture up to 6 meters with built-in echo cancellation, noise suppression, and automatic gain control.

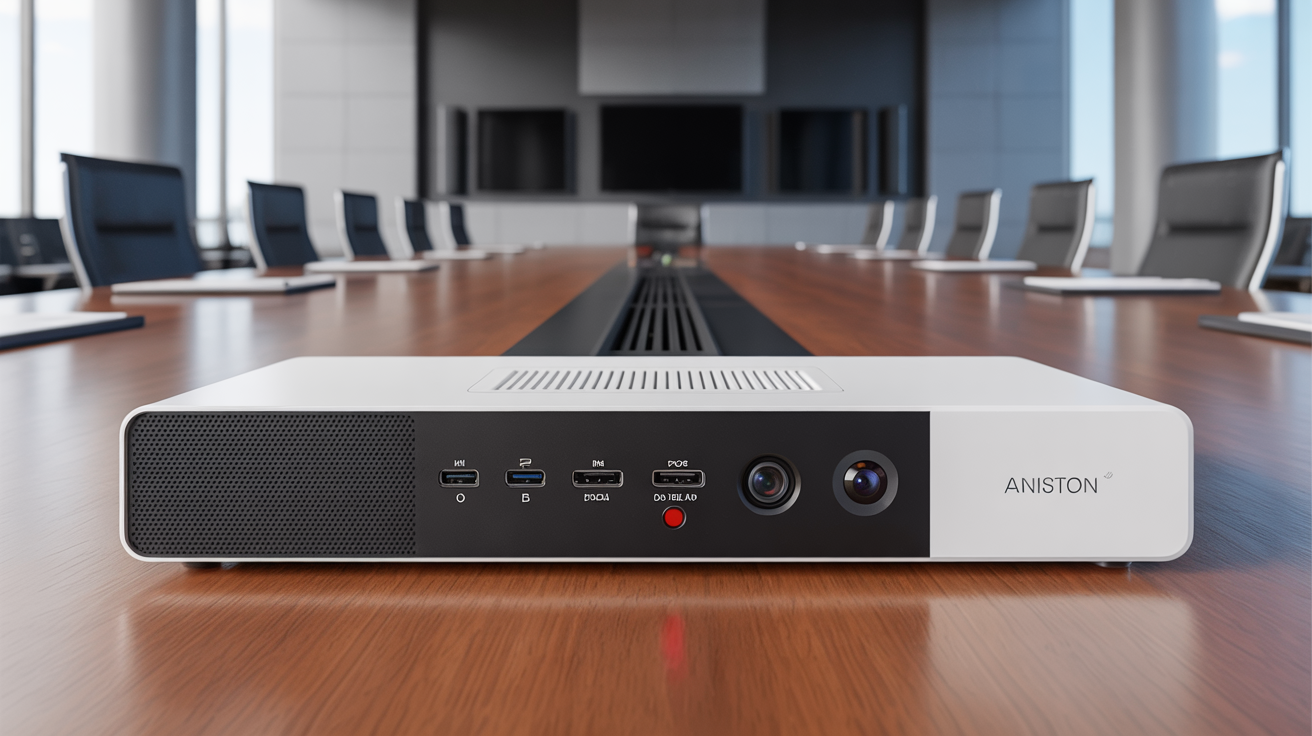

Flexible Connectivity and Multi-Screen Output
With USB-C, HDMI inputs/outputs, dual PoE LAN, and wireless screen casting, the D10 Pro supports up to 9 simultaneous displays—ideal for BYOM/BYOD conferencing and large-format collaboration environments.
AI-Enhanced Conferencing for the Modern Workspace
The Xylon D10 Pro is a premium AI-powered conferencing bar engineered to elevate hybrid collaboration. Featuring dual 4K cameras with auto-framing, advanced audio pickup, and seamless connectivity, it transforms meeting spaces into intelligent communication hubs. Whether in executive boardrooms or agile huddle rooms, the D10 Pro delivers professional-grade video and sound, effortless BYOD integration, and flexible deployment options—all from a single plug-and-play device.
Intelligent Connectivity & Scalable AV Integration
The Xylon D10 Pro offers seamless integration with modern AV ecosystems through a comprehensive suite of wired and wireless interfaces. With dual HDMI outputs, USB-C for BYOM, PoE LAN, and dual-band Wi-Fi casting, it ensures flexible deployment in any space. Integrated AI functions like auto-framing and speaker tracking, along with multi-screen output support and camera presets, make it ideal for boardrooms, collaborative hubs, and enterprise AV environments demanding reliability, clarity, and control.
Future-Ready Conferencing with Xylon D10 Pro
Elevate your collaboration with the Xylon D10 Pro AI conferencing bar by ANISTON. Designed for next-gen hybrid workspaces, it combines intelligent 4K imaging, immersive audio, and smart automation in a single device. With advanced camera control, plug-and-play BYOD support, and full-room voice pickup, the D10 Pro enables powerful, engaging communication—no external peripherals or complex setups required.
