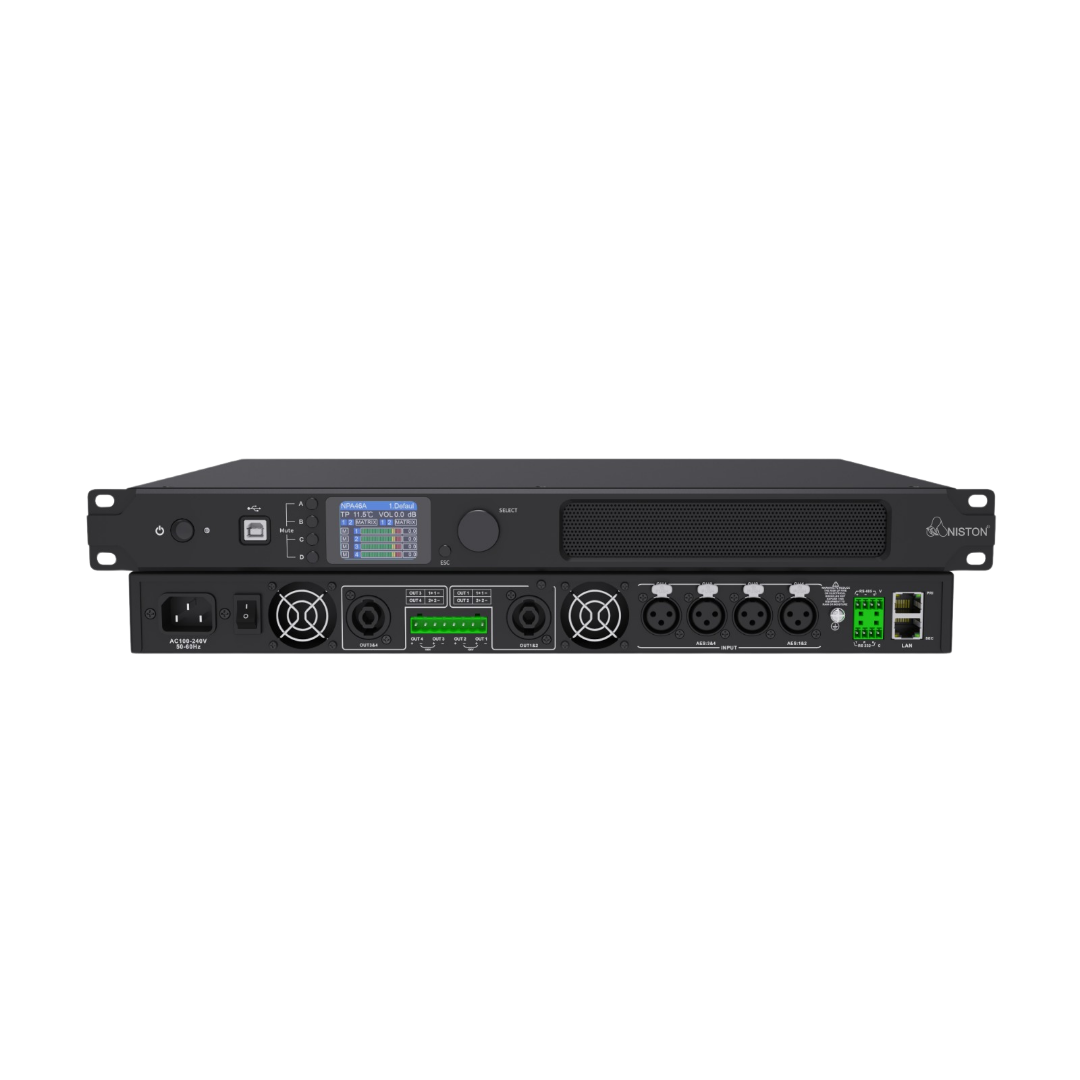

PowerSoft 0604 DSP+D
Dante Network DSP Amplifier
The PowerSoft 0604 DSP+D is a high-performance DSP amplifier designed by Aniston for professional AV environments, delivering powerful audio amplification and intelligent signal processing with seamless Dante integration.
- High-Efficiency Class-D Amplification: Equipped with 4×900W @ 4Ω and 4×600W @ 8Ω output, ensuring powerful and energy-efficient performance for commercial and institutional installations.
- Advanced FIR DSP Processing: Features a 300MHz fixed-point DSP engine with 48kHz/24-bit resolution and up to 2048 FIR filter taps for precise frequency alignment and low-latency audio control.
- Flexible Audio Routing and Protection: Includes a 4×4 matrix mixer, per-channel PEQ, delay, AFC, and intelligent thermal, surge, and load protection to ensure system stability and long-term reliability.
Designed for boardrooms, auditoriums, and enterprise AV systems, the PowerSoft 0604 DSP+D offers clean sound, advanced control, and reliable integration into any networked audio setup.
Product Features
- Dante-enabled 4×4 network DSP amplifier for seamless digital audio routing across IP networks.

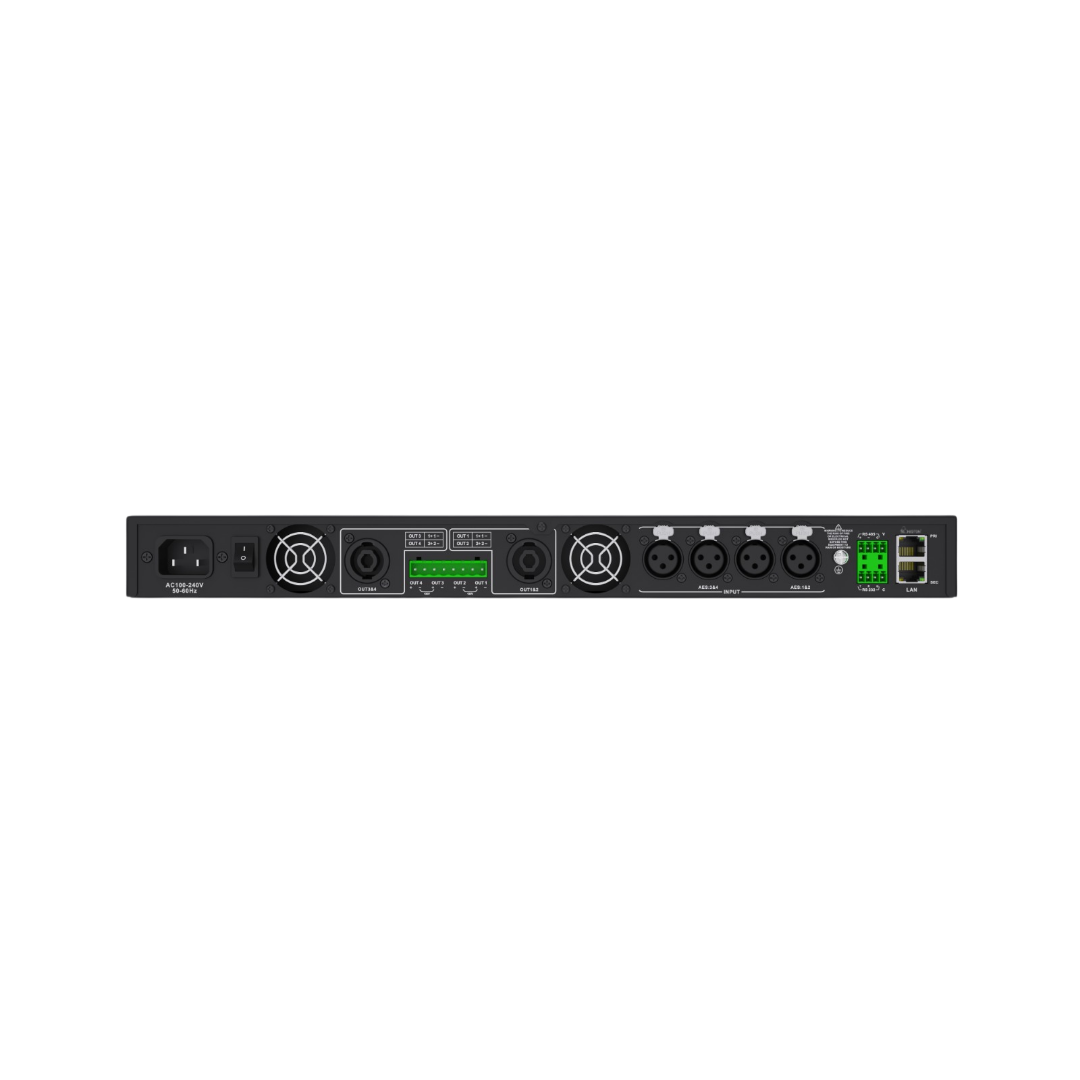

- 4× XLR balanced analog inputs (analog/AES-EBU auto-switching) and 4× speaker outputs (SpeakON connectors).
- Class-D amplification with 4×600W @ 8Ω and 4×900W @ 4Ω, bridgeable to 2×1800W @ 8Ω or 2×1250W @ 100V.
- Supports 70V/100V constant voltage and 4Ω/8Ω constant resistance speaker configurations.
- 300MHz fixed-point DSP engine operating at 48kHz/24-bit for ultra-low latency and high-resolution processing.
- Up to 15-band input EQ and 10-band output EQ per channel with FIR filter support up to 2048 taps.
- Built-in compressor, limiter, noise gate, and AFC (Adaptive Feedback Canceller) on each channel.
- Flexible 4×4 matrix mixing with adjustable cross-points, auto-mixing, gating, and mic priority control.
- Control interfaces include USB (Type-A), TCP/IP (RJ45), RS232, RS485, and Phoenix GPIO for triggers and third-party integration.
- Dante input over dual CAT5e/6 ports with AES67 compatibility and Primary/Secondary redundancy support.
- Euroblock remote fault output and Phoenix GPIO support for external status and control integration.
- Dual 3-speed intelligent fan cooling with front-to-back airflow and minimal idle noise.
- Integrated protection against overcurrent, thermal, DC, surge, reverse polarity, and low load impedance.

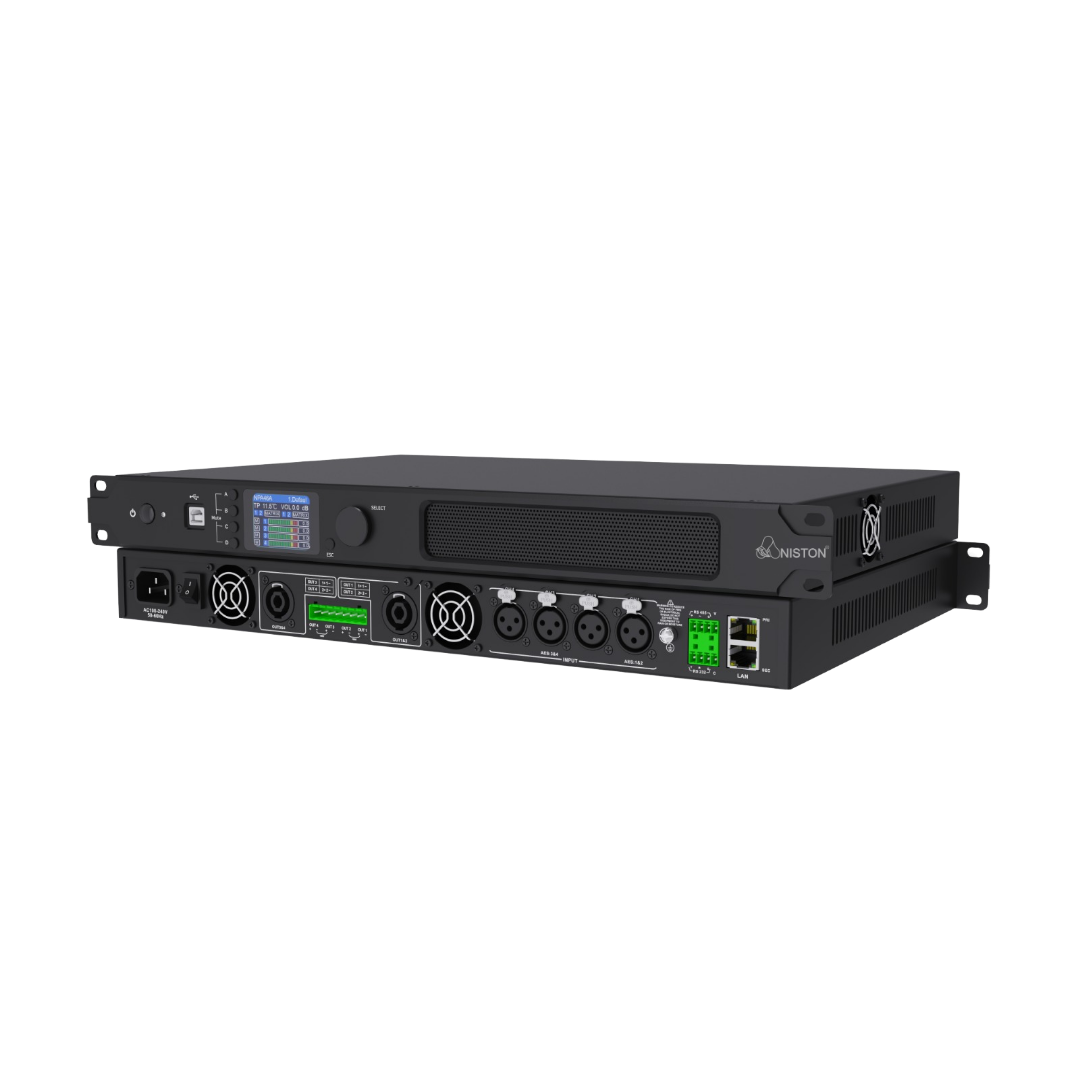

- 1U rackmount chassis optimized for commercial AV, performance venues, and networked audio systems.
- Designed for boardrooms, education campuses, hotels, auditoriums, and multi-zone sound installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | PowerSoft 0604 DSP+D |
| Amplifier Class | Class D |
| Output Power @ 8Ω | 4× 600W RMS |
| Output Power @ 4Ω | 4× 900W RMS |
| Bridge Mode Output | 2× 1800W RMS @ 8Ω |
| Output Power (Hi-Z) | 2× 1250W @ 100V (8Ω), 2× 625W @ 100V (16Ω) |
| Output Modes | Stereo / Bridge / Parallel / Matrix |
| Output Channels | 4× Independent Power Amplifier Channels |
| Frequency Response | 20 Hz – 20 kHz (±0.5 dB @ 8Ω) |
| Voltage Gain | 31.7 dB (8Ω), 35.2 dB @ 70V, 38.2 dB @ 100V |
| Input Sensitivity | +4 dBu |
| Maximum Input Voltage | +24 dBu |
| Input Impedance | 20 kΩ (balanced), 10 kΩ (unbalanced) |
| THD | <1% from 1W to full power |
| Signal-to-Noise Ratio | ≥ 103 dB (A-weighted @ 12dBu sensitivity) |
| Crosstalk | ≤ –60 dB |
| Processor | ADI 300 MHz Fixed-Point DSP Core |
| Sampling Frequency | 48 kHz |
| FIR Filter Taps | Up to 2048 taps |
| Input PEQ | Up to 15 bands per channel |
| Output PEQ | Up to 10 bands per channel |
| Filter Types | HPF, LPF, All-Pass, Butterworth, Bessel, Linkwitz-Riley |
| Matrix Mixing | 4×4 matrix, fully routable and adjustable |
| Auto Mixer | With gating and microphone priority |
| Compressor / Limiter | Per channel |
| Feedback Control | Adaptive Feedback Canceller (AFC) |
| Analog Inputs | 4 × XLR (Analog / AES-EBU switchable) |
| Analog Outputs | 4 × SpeakON terminals |
| Digital Inputs (Dante) | 4 × Dante Channels via RJ45 |
| Digital Networking Ports | RJ45 × 2 (Primary / Secondary redundant) |
| Control Ports | USB (Type-A), RS232, RS485, TCP/IP, GPIO (Phoenix) |
| Remote Fault Output | Euroblock (3P) × 1 |

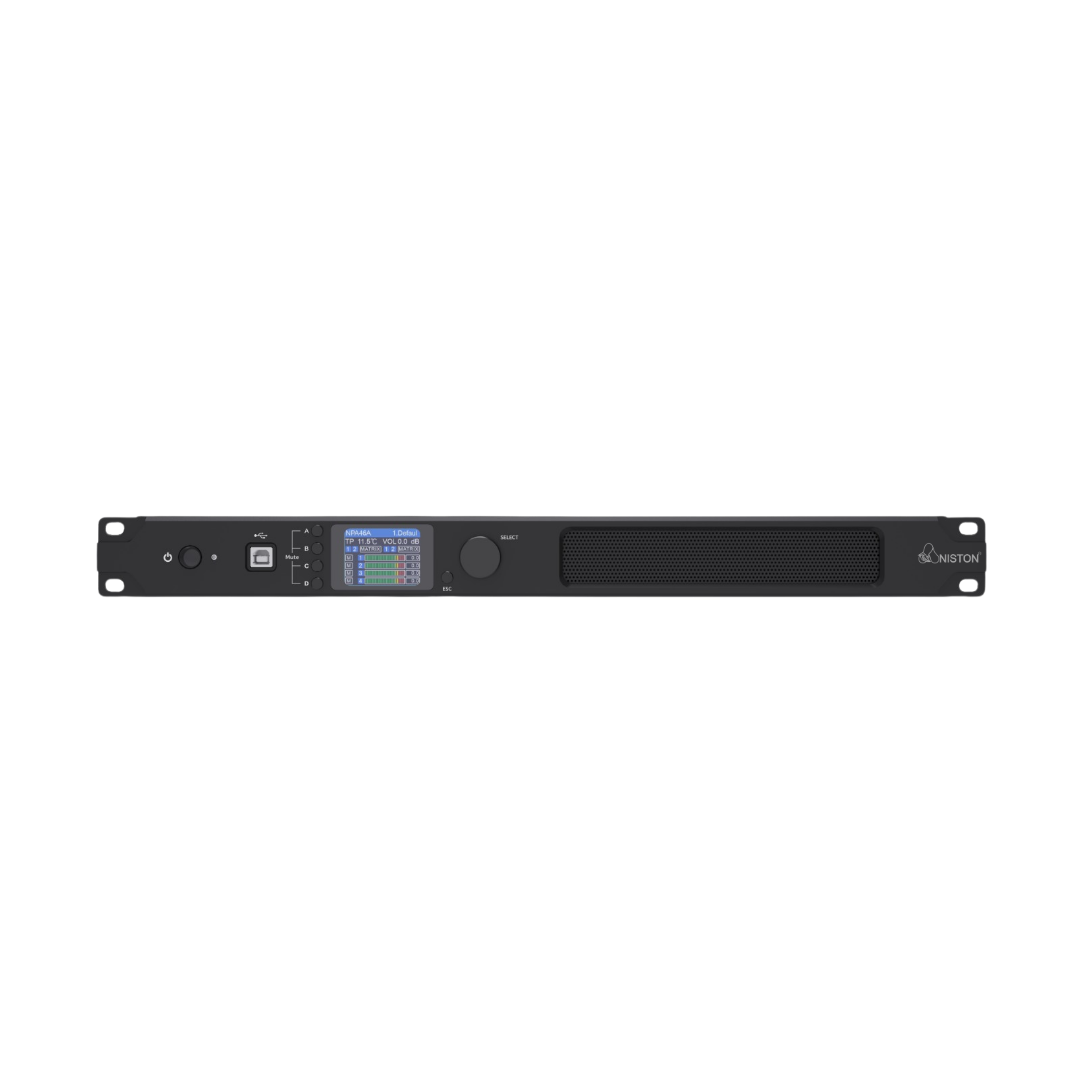

| Indicators | 320×240 IPS display (Temp / Voltage / Current Monitoring) |
| Software Support | Windows GUI for full DSP and system control |
| Load Protection | Peak current, DC, startup delay, breaker |
| Thermal Protection | Auto shutdown @ 100°C |
| Overcurrent Protection | Auto mute and recovery |
| Low Load Impedance Protection | Auto mute with restore |
| Integrated Power Protection | Surge, reverse polarity, back-EMF |
| Cooling System | Dual 3-speed intelligent fans (front-to-back) |
| Power Supply Range | AC 100–240V, 50/60Hz with PFC |
| Power Consumption | Typical <62W |

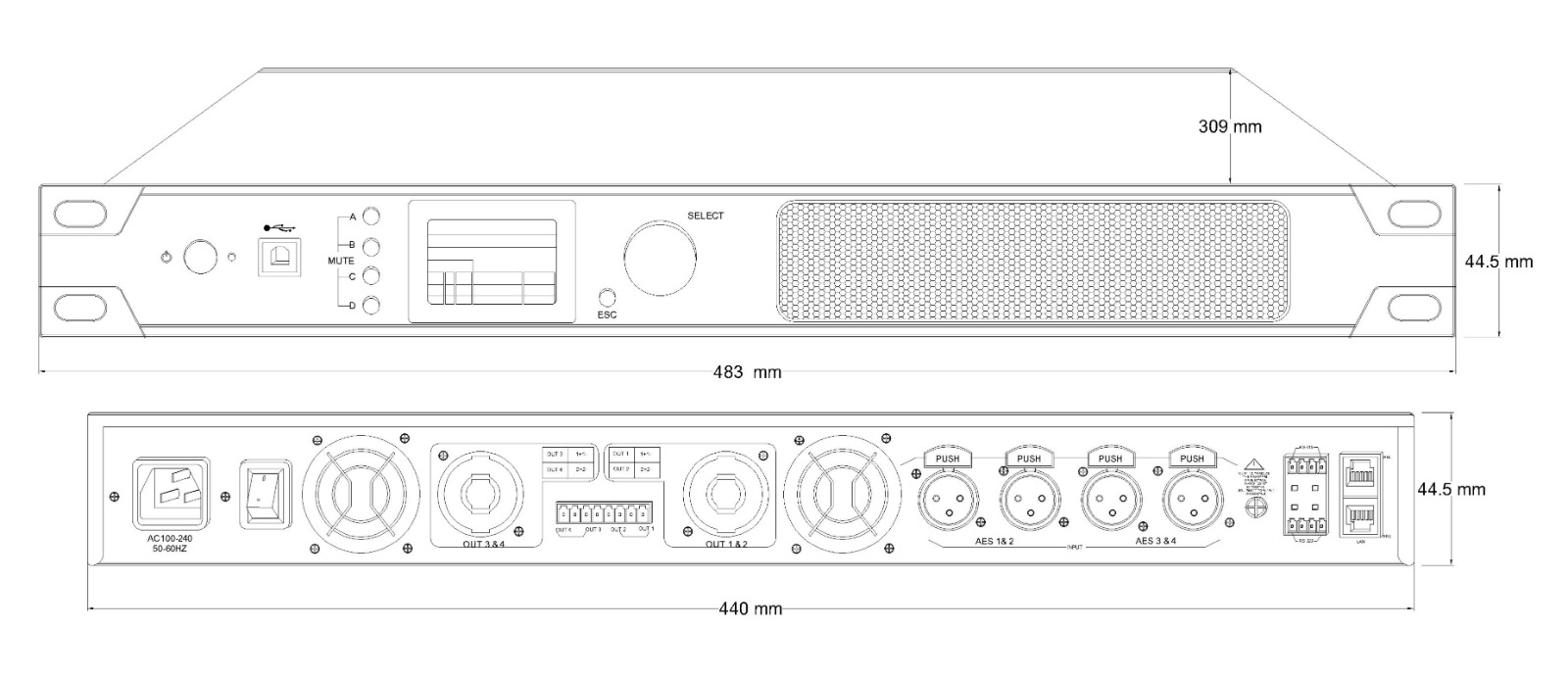

| Dimensions (W × D × H) | 483 mm × 309 mm × 44.5 mm |
| Dimensions (Package) | 580 mm × 580 mm × 170 mm |
| Weight | 6 kg (device), 7 kg (packaged) |
Block Diagram
Resources & Manuals
Next-Gen Dante DSP Amplifier for Scalable AV Systems
The PowerSoft 0604 DSP+D is a powerful 4-channel DSP amplifier engineered for modern commercial AV environments. It features integrated Dante networking, real-time FIR DSP processing, and Class-D efficiency for clean, high-output audio. Ideal for boardrooms, campuses, and multi-zone installations, it supports 70V/100V constant voltage systems, adaptive feedback cancellation, and matrix mixing. With TCP/IP, USB, RS232/RS485, and GPIO control, this amplifier ensures flexible deployment and seamless integration across digital infrastructures.
Main Features
High-Performance FIR-Based DSP
Equipped with a powerful 300MHz DSP engine and 48kHz/24-bit processing, the 0604 DSP+D delivers precise FIR filtering, 4×4 matrix mixing, and low-latency signal control—ideal for demanding audio environments.
Redundant Dante & AES67 Connectivity
Featuring dual Dante ports with AES67 support, the amplifier enables seamless digital audio distribution and automatic failover, ensuring uninterrupted performance in mission-critical AV installations.
Comprehensive System Protection
Integrated AFC, multiband dynamics, and intelligent protection systems guard against overheat, DC faults, and impedance issues—delivering clean, stable output with maximum equipment longevity.
Enterprise-Class DSP Amplifier for Intelligent AV Integration
The PowerSoft 0604 DSP+D is a high-performance 4-channel DSP amplifier designed to meet the demands of modern AV environments. Featuring integrated Dante networking, precision FIR and PEQ processing, and advanced Class-D amplification, it delivers powerful, low-latency audio performance. Ideal for boardrooms, education, and commercial spaces, the D430 ensures clean signal distribution, flexible output modes, and reliable system protection in a compact 1U design.
Reliable Dante Audio Distribution & Intelligent Signal Control
The PowerSoft 0604 DSP+D is equipped with a 4×4 Dante interface featuring AES67 support and dual-port redundancy for uninterrupted, low-latency audio streaming over IP networks. Designed for seamless integration, it offers versatile control options including USB, TCP/IP, RS232, RS485, and GPIO. With advanced DSP tools like matrix mixing, FIR filtering, PEQ, and real-time diagnostics, the amplifier ensures precise audio management across corporate, educational, and multi-zone commercial installations.
Professional-Grade DSP Amplification with PowerSoft 0604 DSP+D
Experience superior audio precision with the PowerSoft 0604 DSP+D by ANISTON—engineered for scalable commercial AV installations. This 4-channel Class-D amplifier delivers up to 4×900W @ 4Ω and 4×600W @ 8Ω, supporting both low-impedance and 70V/100V constant voltage systems via bridge mode. Equipped with a 300MHz DSP core, 4×4 Dante networking with dual-port redundancy, and advanced FIR filtering, it ensures real-time signal processing with unmatched clarity. With flexible control via TCP/IP, USB, RS232, RS485, and GPIO, the 0604 DSP+D is your all-in-one solution for matrix routing, adaptive feedback cancellation, and protected high-power audio delivery.
