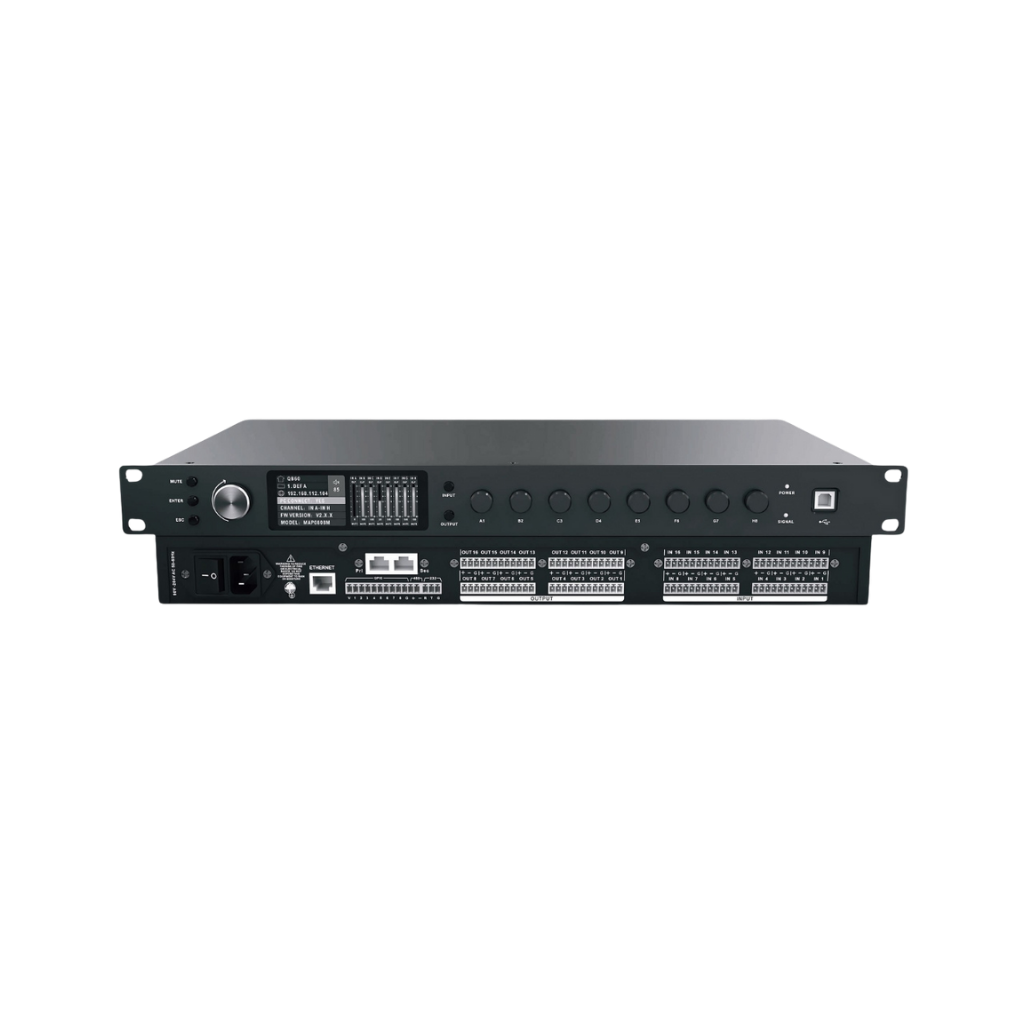

Symmetrix DAP1616 DAN64
Dante Audio DSP

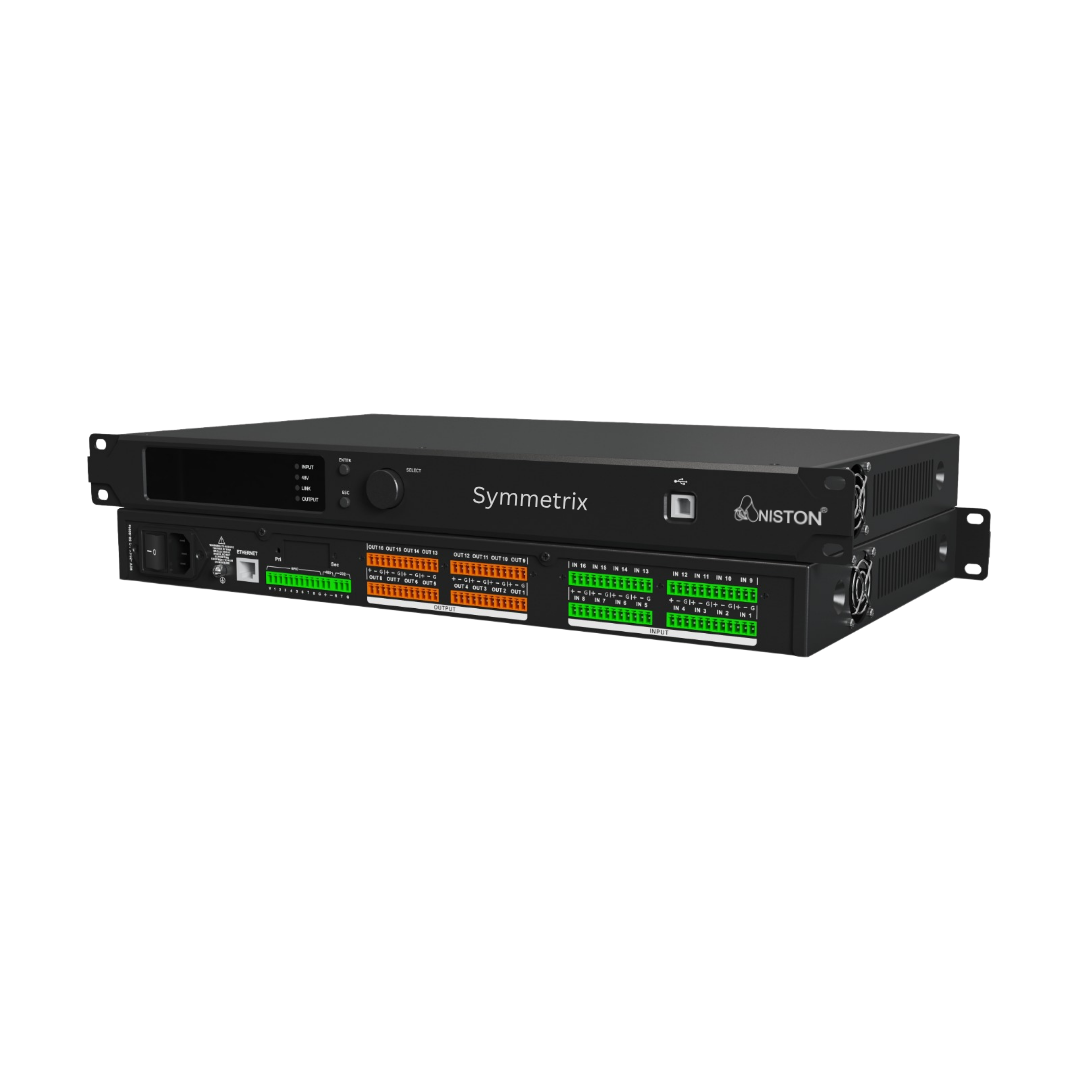

The Symmetrix DAP1616 DAN64 is a high-performance Dante-enabled Digital Signal Processor (DSP) designed for professional audio applications.
- Dante Network Audio: Supports 64x64 Dante channels for high-quality digital audio transmission over Ethernet, ensuring flexibility in large-scale AV deployments.
- High-Quality Audio Processing: Equipped with a 24-bit ADI SHARC DSP and ARM quad-core processor, delivering exceptional signal processing performance with ultra-low latency (1.05ms).
- AEC, ANC, and AGC: Integrated Acoustic Echo Cancellation (AEC), Active Noise Control (ANC), and Automatic Gain Control (AGC) for optimized speech clarity in conferencing and live audio environments.
Designed for boardrooms, auditoriums, and professional AV installations, the Symmetrix DAP1616 DAN64 delivers exceptional audio performance, ensuring superior speech intelligibility and sound management.
Product Features
- Advanced digital signal processing (DSP) technology for high-quality audio management.
- 16 balanced mic/line input and output channels for flexible audio routing.
- Ultra-low latency (1.05ms) analog-in to analog-out for real-time audio processing.
- 64×64 Dante network audio support for seamless audio distribution over Ethernet.
- Acoustic Echo Cancellation (AEC), Active Noise Control (ANC), and Automatic Gain Control (AGC) for superior speech clarity.
- Built-in 24-bit ADI SHARC DSP and ARM quad-core processor for powerful audio performance.
- +48V phantom power support on each input channel for professional condenser microphones.
- Matrix mixing and auto-mixing capabilities for customized audio setups.
- Multiple control interfaces including USB, TCP/IP, RS232, RS485, and GPIO for enhanced integration.
- Camera tracking control compatible with most camera control protocols.
- USB-free driver connection with wired and wireless network control options.
- OLED display for real-time audio status and configuration feedback.
- Durable 1U rack-mount design with side-vented cooling system.
- Optimized for conference rooms, auditoriums, broadcasting, and commercial AV applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | Aniston DAP1616 DAN64 |
| Processor | ADI SHARC 21489 DSP + ARM Quad-Core |
| Audio Latency | 1.05 ms (Analog In to Analog Out) |
| Input Channels | 16 Balanced Mic/Line (XLR/TRS, software-selectable gain) |
| Input Gain Range | +66 dB to -6 dB (software controlled) |
| Input Impedance | 12 kΩ @ 1 kHz (balanced/unbalanced) |
| Maximum Input Level | +24 dBu |
| Phantom Power | +48 VDC, 6.5 mA per channel |
| Output Channels | 16 Balanced Line-Level (Phoenix connectors) |
| Output Impedance | 200 Ω |
| Maximum Output Level | +24 dBu |
| Frequency Response | 20 Hz – 20 kHz ±0.5 dB |
| THD+N | 0.001% (20 Hz – 20 kHz, +4 dBu Input, 0 dB Gain) |
| Dynamic Range | 115 dB (A-weighted, Analog In to Out) |
| Channel Separation (Crosstalk) | ≤ -105 dB @ 1 kHz, +4 dBu input |
| Dante Network Audio | 64×64 Channels (Primary + Secondary, Redundant) |
| Dante Compatibility | AES67, Dante Domain Manager, SMPTE ST2110 compliant |
| Sampling Rate | 48 kHz (Internal Clock) |
| Bit Depth / Conversion | 24-bit, ≥128x Oversampling |
| Digital Audio I/O | 8 In / 8 Out via AmpLink, <2 ms latency |
| Digital Audio Ports | USB (Type A/B), AmpLink |
| Control Interfaces | USB, TCP/IP, RS232, RS485, GPIO (4 In, 4 Out) |
| Display & Indicators | OLED Display, Power LED, Per-channel Status Indicators |
| Audio Features | AEC, ANC, AGC, Automixing, Feedback Suppression, PEQ, Dynamics, Delay, Fader, Source Selector, Combiner, Speaker Processor, Noise Generator, Mute Groups |
| Camera Tracking | Yes, Compatible with VISCA, PELCO, ONVIF Protocols |
| Software Control | Aniston Audio Controller (Windows), Android Mobile App |
| Web UI Access | Yes, browser-based management over IP |
| Security Protocols | Password protection, IP whitelisting |
| Cooling System | 2× Variable-Speed Fans (Side Exhaust, Silent Operation) |
| Power Consumption | 35 W Typical, 60 W Maximum |
| Power Supply | 85–264 VAC, 50/60 Hz, Auto-Ranging |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |

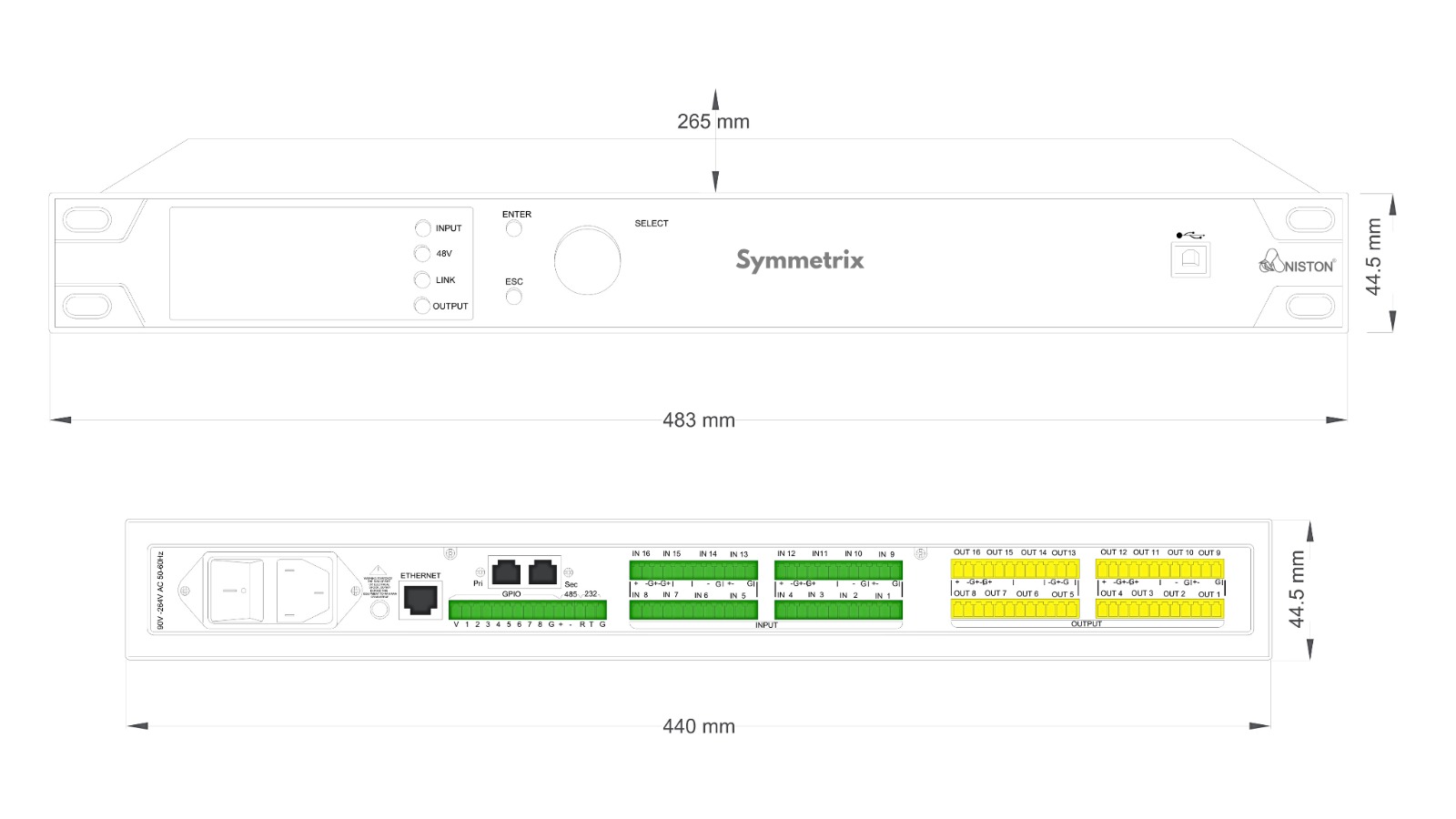

| Dimensions | 483 mm × 265 mm × 44.5 mm (1U Rackmount) |
| Weight | 3.4 kg |

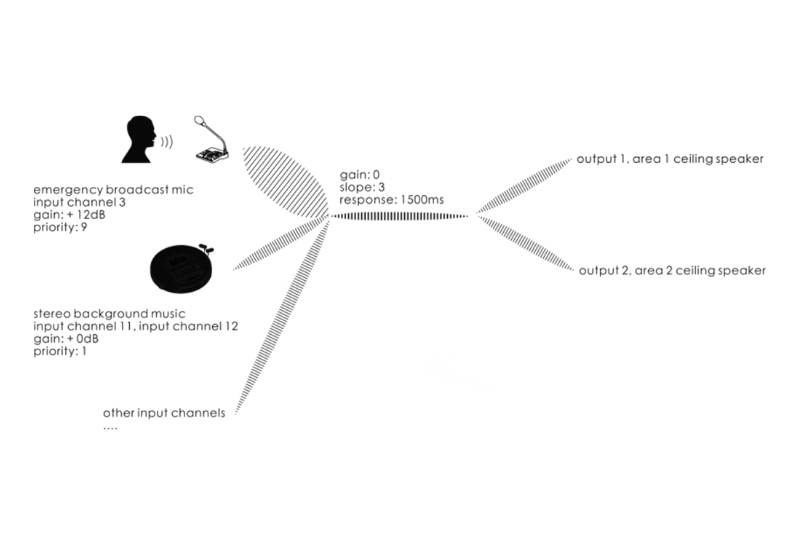

Block Diagram
Resources & Manuals
High-Performance Dante Audio DSP for Professional AV Solutions
The Symmetrix DAP1616 DAN64 is an advanced Digital Signal Processor (DSP) designed for seamless audio routing, mixing, and processing in modern conference systems, broadcast applications, and commercial AV environments. Featuring a 16x16 input/output configuration, ultra-low latency, and Dante network audio support, it ensures superior sound quality and flexibility. With built-in Acoustic Echo Cancellation (AEC), Active Noise Control (ANC), and Automatic Gain Control (AGC), it delivers crystal-clear communication and optimized audio performance for professional settings.
Main Features
Superior Digital Signal Processing
The Symmetrix DAP1616 DAN64 is powered by an ADI SHARC 21489 DSP and ARM quad-core processor, delivering high-performance audio processing with ultra-low latency (1.05ms) for professional AV applications.
Advanced Dante Network Audio
Featuring 64x64 Dante channels for seamless networked audio distribution, ensuring flexible and high-quality sound transmission over Ethernet in conferencing and commercial environments.
Comprehensive Audio Control
Equipped with Acoustic Echo Cancellation (AEC), Active Noise Control (ANC), Automatic Gain Control (AGC), and matrix mixing, providing superior audio clarity and customization options.
High-Performance DSP for Professional Audio Processing
The Symmetrix DAP1616 DAN64 is a cutting-edge Dante-enabled Digital Signal Processor (DSP) engineered for superior audio routing, mixing, and processing. With 16 balanced input and output channels, it ensures seamless integration into professional AV setups. Powered by ADI SHARC 21489 DSP and an ARM quad-core processor, it delivers ultra-low latency (1.05ms) and pristine sound quality for conference rooms, auditoriums, and commercial audio applications.
Seamless Dante Integration & Flexible Control
The Symmetrix DAP1616 DAN64 supports 64x64 Dante network channels, enabling high-quality, low-latency audio transmission over Ethernet. Designed for effortless integration, it features multiple control interfaces, including USB, TCP/IP, RS232, RS485, and GPIO. Its built-in DSP processing, including Acoustic Echo Cancellation (AEC), Active Noise Control (ANC), and Automatic Gain Control (AGC), ensures crystal-clear audio for video conferencing, broadcasting, and professional AV environments.

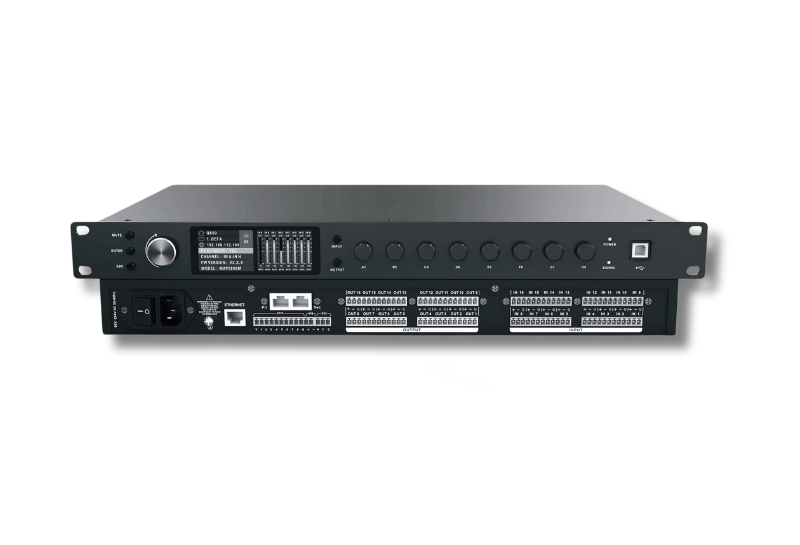

Seamless Audio Processing with Symmetrix DAP1616 DAN64 Dante DSP
Elevate your audio experience with the Symmetrix DAP1616 DAN64 Digital Signal Processor (DSP) by ANISTON. Designed for conference rooms, broadcast studios, and professional AV installations, this Dante-enabled DSP ensures high-fidelity, real-time audio processing with ultra-low latency (1.05ms). With 16 balanced input and output channels, Acoustic Echo Cancellation (AEC), Active Noise Control (ANC), and Automatic Gain Control (AGC).
