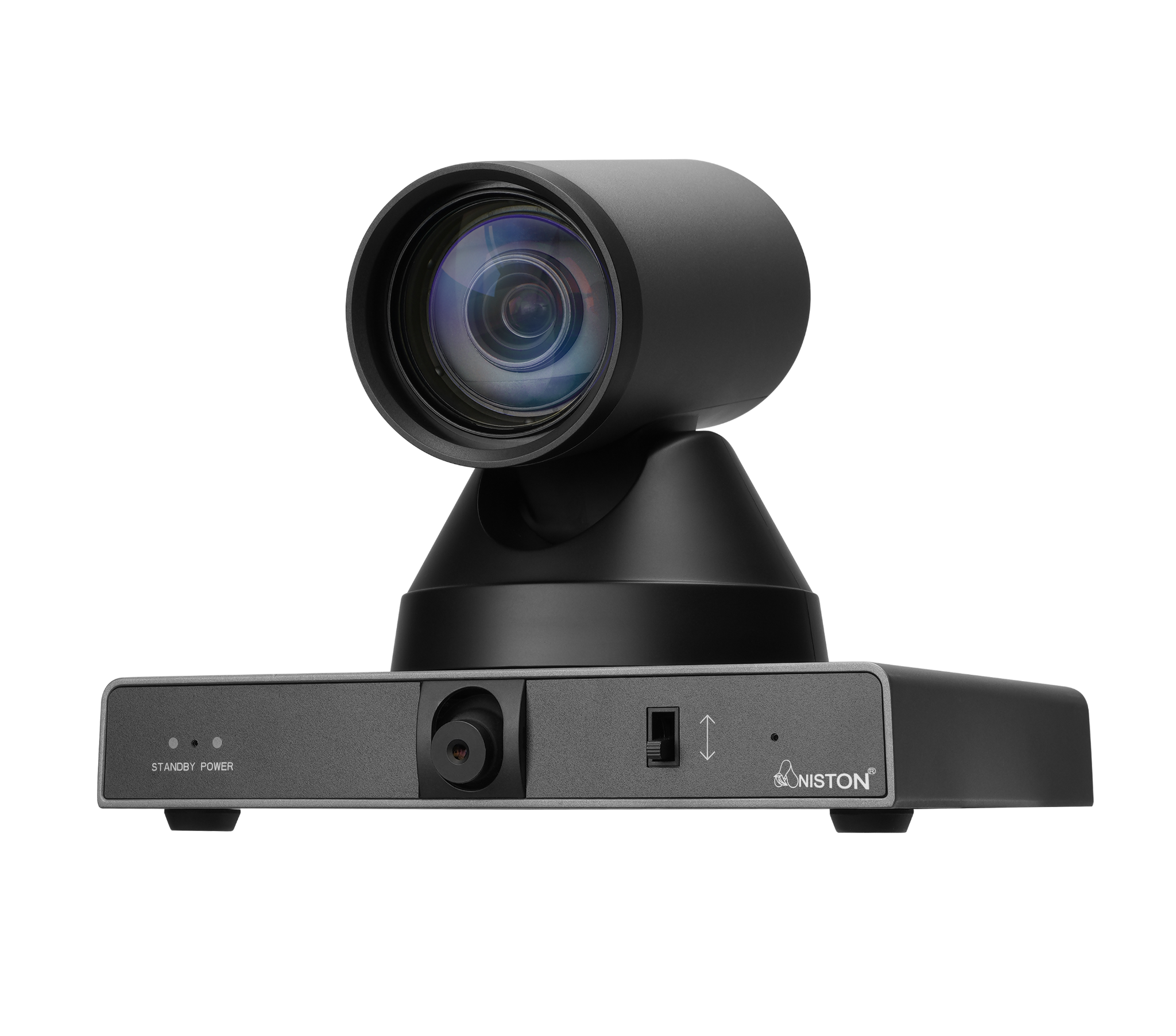

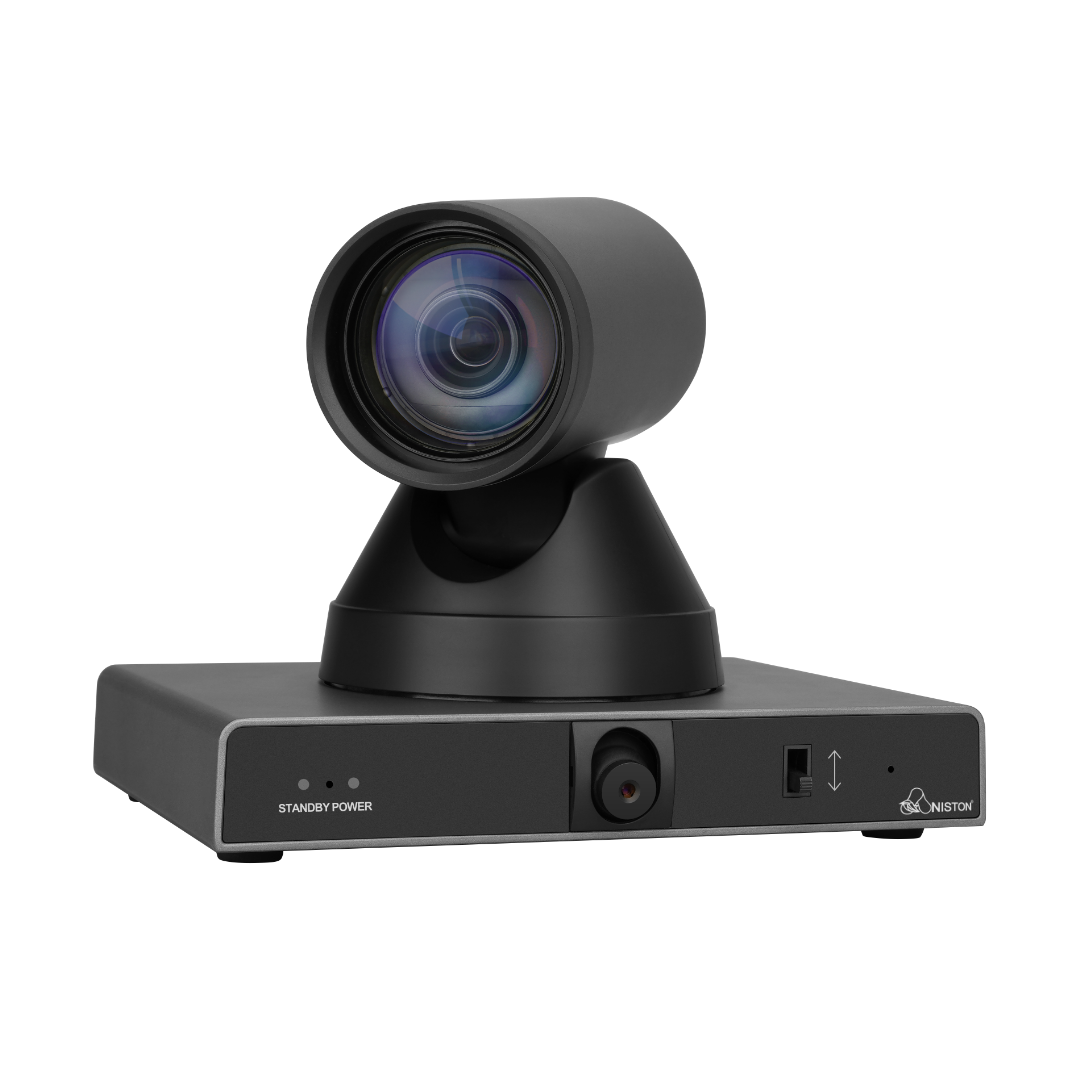

DualSight Edu Pro 50E
AI-Powered Dual PTZ Camera
The DualSight Edu Pro 50E DSC-50E is a next-generation AI classroom camera system featuring a synchronized set of two dual-lens PTZ units—one for teacher tracking and one for student interaction. Designed for hybrid learning, lecture capture, and smart classrooms, it offers intelligent automation and crystal-clear video from every angle.
- Dual-Lens Configuration (PTZ + Panoramic): Each unit combines a motorized PTZ lens for AI tracking and a fixed panoramic lens for wide-angle room coverage—delivering close-up and contextual views simultaneously.
- Optimized Field of View for Teacher & Student: The teacher-side camera uses a narrow 48° PTZ lens for focused tracking, while the student-side features a wide 107° PTZ lens for classroom engagement—ensuring both perspectives are always captured.
- AI Tracking, Auto Switching & Gesture Control: Built-in AI enables auto tracking, scene-based switching between teacher and student views, and gesture-based control—no remotes or operators required for dynamic learning environments.
Ideal for modern classrooms, lecture halls, and training spaces, the DualSight Edu Pro 50E redefines smart video delivery—offering dual-view coverage, advanced AI features, and seamless AV integration out of the box.
Product Features
- Delivered as a complete set of two dual-lens PTZ cameras (Teacher + Student view).
- Each unit includes a PTZ lens (motorized) and a fixed panoramic lens for dual video output.
- Teacher PTZ lens with 48° FOV for focused instructor tracking; Student PTZ lens with 107° FOV for wide classroom coverage.
- Panoramic lens features a 5.7MP CMOS sensor with 107° (H) × 80° (V) × 112° (D) field of view for full-room context.
- AI-powered tracking, auto-framing, partition tracking, gesture recognition, and scene-based auto-switching.
- Gesture control enables hands-free zooming, tracking toggle, and recall of presets without a remote.
- Supports Full HD 1080p at 60/50/30/25 fps and 720p at 60/50 fps across all interfaces.
- 20X optical zoom (f = 4.9mm – 94mm) and 16X digital zoom for accurate subject framing.
- Simultaneous output via HDMI, USB 3.0, USB 2.0, 3G-SDI, and LAN (IP Streaming) for system-wide integration.
- Low-light performance with minimum illumination of 0.1 lux (PTZ) and 1.0 lux (panoramic), with 2D+3D DNR.
- Built-in omnidirectional microphone with 6-meter pickup range and noise suppression.
- Video compression via H.264, H.265, MJPEG (LAN), and MJPEG/YUY2 (USB).
- Supports up to 256 preset positions with ±0.1° accuracy via serial/IP control.
- Pan range: ±170° and Tilt range: -30° to +90°, with speeds from 0.1°/s to 100°/s (Tilt) and 0.1°/s to 80°/s (Pan).
- Supports flip and mirror (H/V Flip) functions and tally light indicator (front red LED).
- Streaming protocols: TCP/IP, HTTP, RTSP, RTMP, RTMPS, DHCP, Multicast, ONVIF.
- Control protocols: VISCA, VISCA over IP, Pelco-D, Pelco-P, ONVIF.

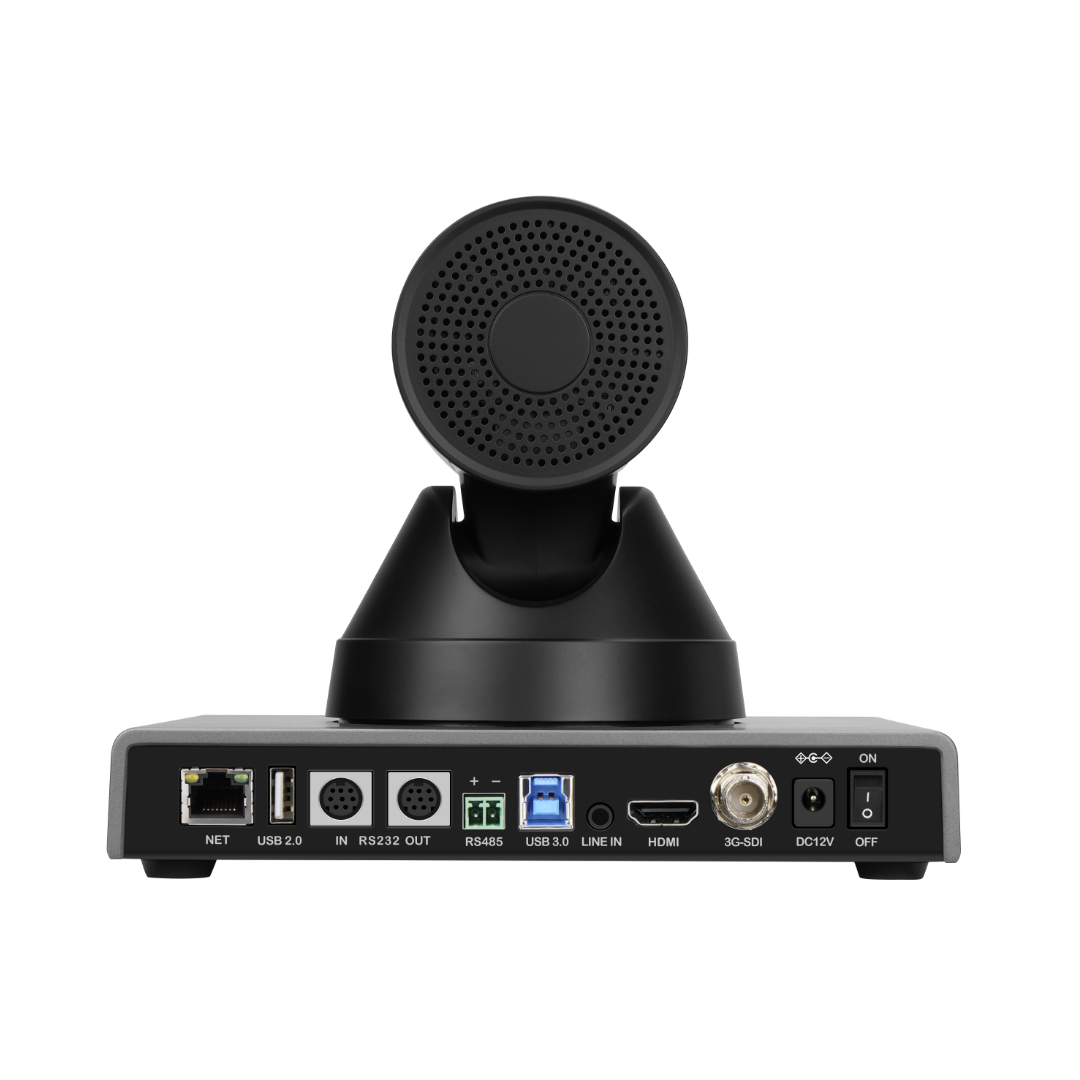

- Interfaces: RS232, RS422/485 (Phoenix), USB, Ethernet (RJ45), IR.
- PoE+ (IEEE 802.3at) and 12V DC power input with max consumption of 17W per unit.
- Web-based GUI for remote configuration and firmware upgrades.
- USB output supports UVC 1.1 / 1.5, compatible with Windows, macOS, Linux, and Android platforms.
- Camera dimensions: 245mm × 145mm × 165mm; weight: 1.4kg per unit.
- Supplied with wall/ceiling mount, IR remote, power adapter, and necessary cables.
- Ideal for hybrid classrooms, lecture capture, student engagement, and smart learning environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | DualSight Edu Pro 50E |
| Model Number | DSC-50E |
| System Configuration | Set of 2 Dual-Lens PTZ Cameras (Teacher + Student) |
| PTZ Image Sensor | 1/2.8" CMOS |
| Panoramic Image Sensor | 1/2.5" CMOS |
| Effective Pixels (PTZ) | >2.13 Megapixels |
| Effective Pixels (Panoramic) | 5.7 Megapixels |
| Optical Zoom (PTZ) | 20X (f = 4.9mm – 94mm, F1.6 – F3.5) |
| Digital Zoom | 16X |
| PTZ FOV (Teacher) | 48° (Horizontal) |
| PTZ FOV (Student) | 107° (Horizontal) |
| Panoramic FOV | 107° (H) × 80° (V) × 112° (D) |
| Minimum Illumination | 0.1 Lux (PTZ), 1.0 Lux (Panoramic), AGC ON |
| S/N Ratio | >= 40 dB |
| Shutter Speed | 1/60s to 1/10,000s |
| Focus Mode | Auto / Manual (PTZ), Fixed (Panoramic) |
| Aperture | F1.6 – F3.5 |
| Exposure Modes | Auto / Manual |
| White Balance | Auto / Indoor / Outdoor / Manual / One Push |
| Backlight Compensation | Supported |
| Video Output Resolutions | 1080p60/50/30/25, 720p60/50 |
| Video Compression (LAN) | H.264 / H.265 / MJPEG |
| Video Compression (USB) | MJPEG, YUY2 |
| USB Protocols | UVC 1.1, UVC 1.5 |
| USB Output Resolutions | MJPEG: up to 3840×2160, YUY2: up to 1920×1080 |
| USB Frame Rate | Up to 30 fps |
| Streaming Protocols | TCP/IP, HTTP, RTSP, RTMP, RTMPS, DHCP, Multicast, ONVIF |
| Control Protocols | VISCA / VISCA over IP / Pelco-D / Pelco-P / ONVIF |
| Control Interfaces | RS232 (Mini-DIN), RS422/485 (Phoenix), IP, IR, USB |
| AI Functions | Auto Tracking, Auto Framing, Gesture Recognition, Partition Tracking, AI Guard |
| Gesture Control | Zoom In/Out, Tracking Toggle, Preset Recall |
| Pan Range | ±170° |
| Tilt Range | -30° to +90° |
| Pan Speed | 0.1° to 80°/s |
| Tilt Speed | 0.1° to 100°/s |
| Preset Positions | 256 |
| Preset Accuracy | ±0.1° |
| Flip / Mirror | Supported (H/V Flip) |
| Tally Light | Yes (Front Red LED) |
| Built-in Microphone | Omnidirectional, 6m pickup, noise suppression |
| Audio Input | 1× Line-in (3.5mm stereo jack) |
| Audio Compression | AAC |
| Power Input | DC 12V / PoE+ (IEEE 802.3at) |
| Power Consumption | Max 17W per unit |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Mounting | Wall / Ceiling Mount (Included) |
| Dimensions (W×D×H) | 245 × 145 × 165 mm |
| Weight | 1.4 kg per unit |

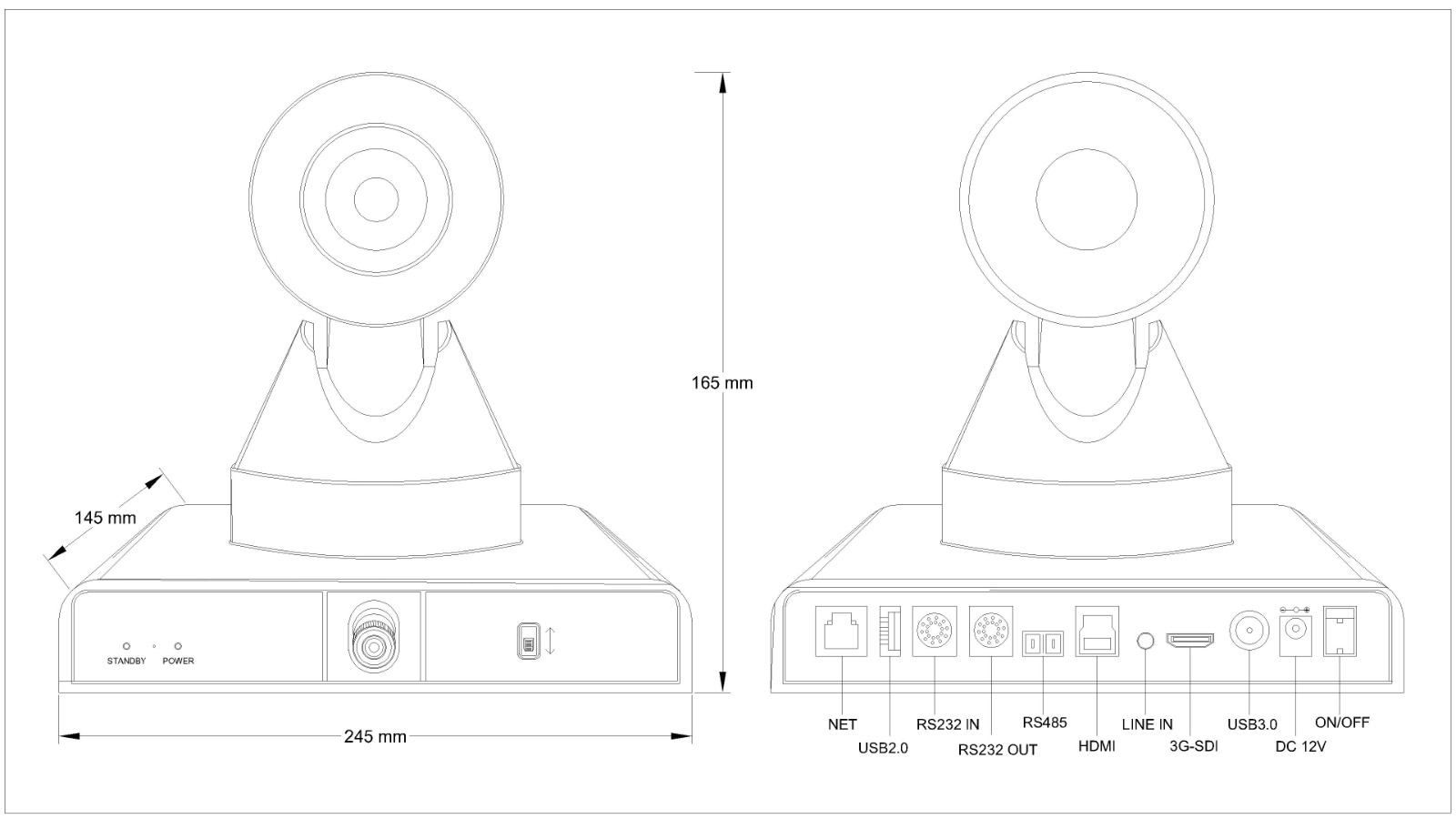

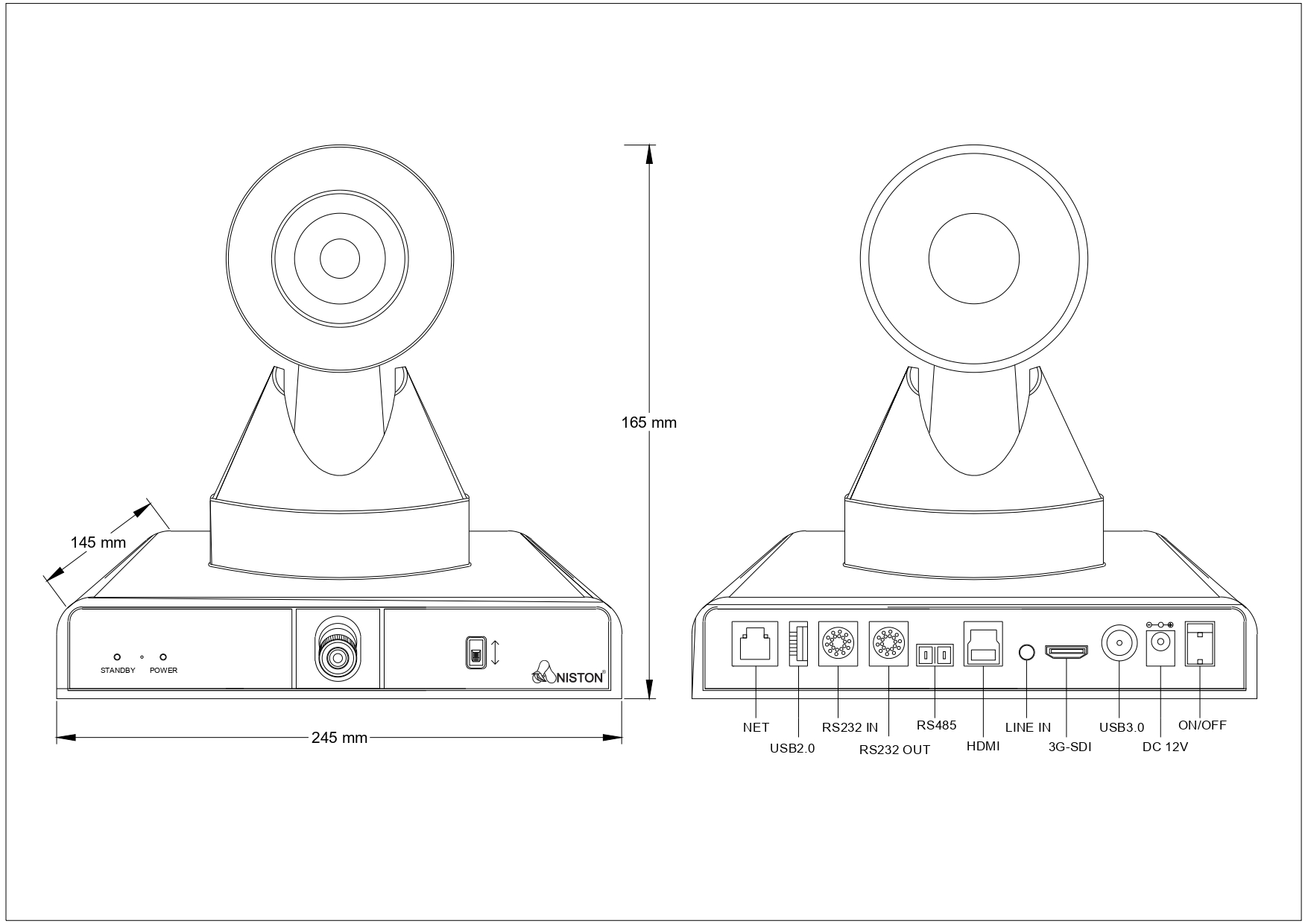

Product Dimension
Resources & Manuals
Software & Downloads
Coming Soon
AI-Powered Dual PTZ Camera System for Smart Classrooms
The DualSight Edu Pro 50E is a next-gen AI camera system
purpose-built for modern education and hybrid learning.
Delivered as a complete set of two dual-lens PTZ units—one for
the teacher area and one for the student view—it enables
intelligent, synchronized classroom capture. With AI-based
tracking, gesture recognition, and auto-switching logic, it
delivers dynamic coverage without manual control.
Featuring Full HD 1080p60 video, 20X optical zoom, and
panoramic context lenses, it ensures both focused and
wide-angle perspectives are always captured. Whether for
lecture capture, student interaction, or remote teaching, the
DualSight Edu Pro 50E transforms any learning space into a smart,
professional-grade AV environment.
Main Features

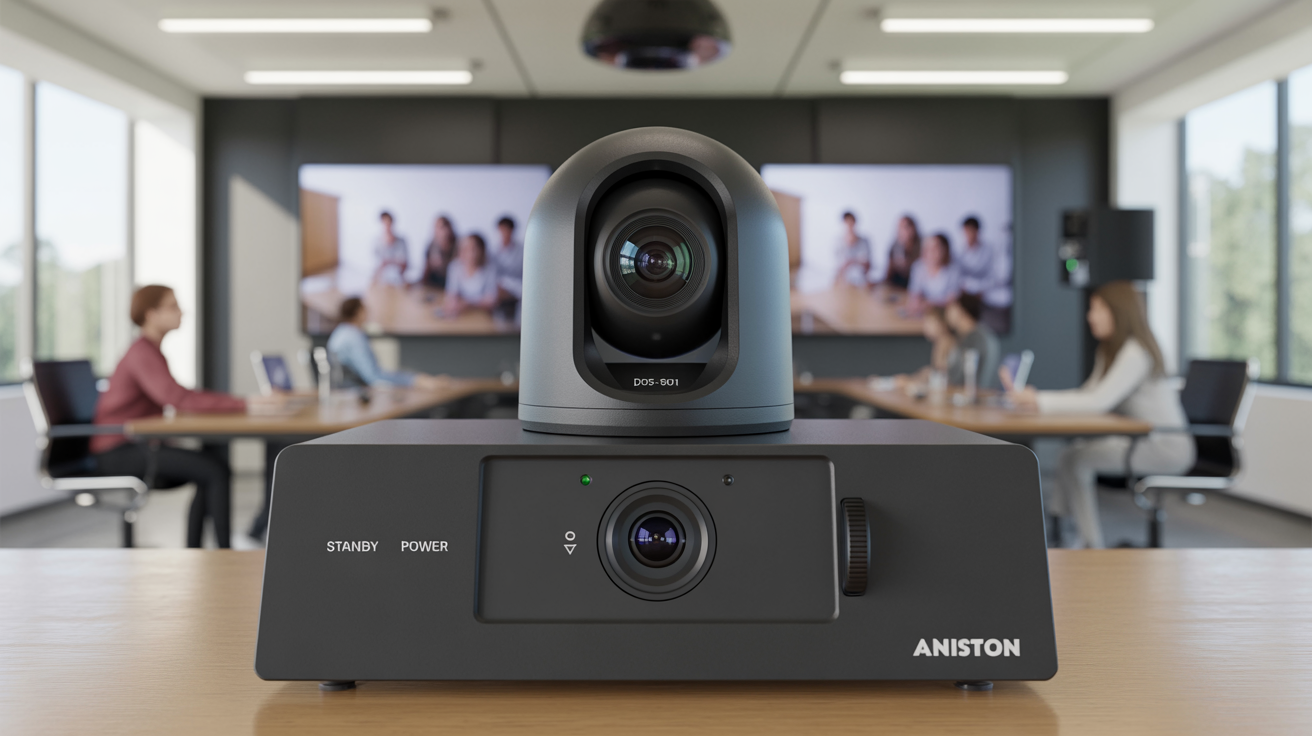

Dual-Lens Design with Simultaneous Output
The DSC-50E features two PTZ cameras—each equipped with both a motorized PTZ lens and a fixed panoramic lens. This setup delivers synchronized close-up and wide-angle views for full-classroom coverage, enhancing remote learning and recordings.

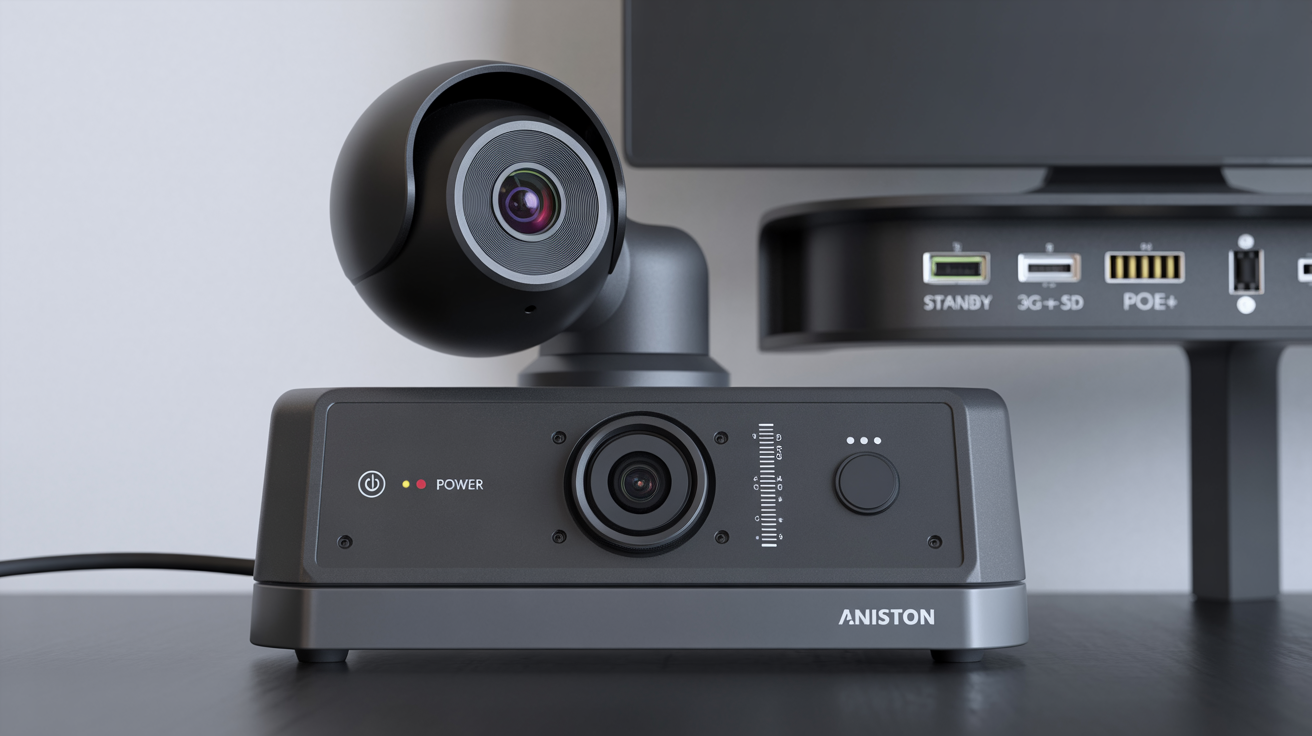

Seamless Integration with Multi-Interface Outputs
With HDMI, USB 3.0, 3G-SDI, and LAN outputs, the DSC-50E supports PoE+ and advanced streaming protocols including RTMP, RTSP, RTMPS, SRT, and ONVIF—ensuring compatibility with a wide range of AV and education platforms.

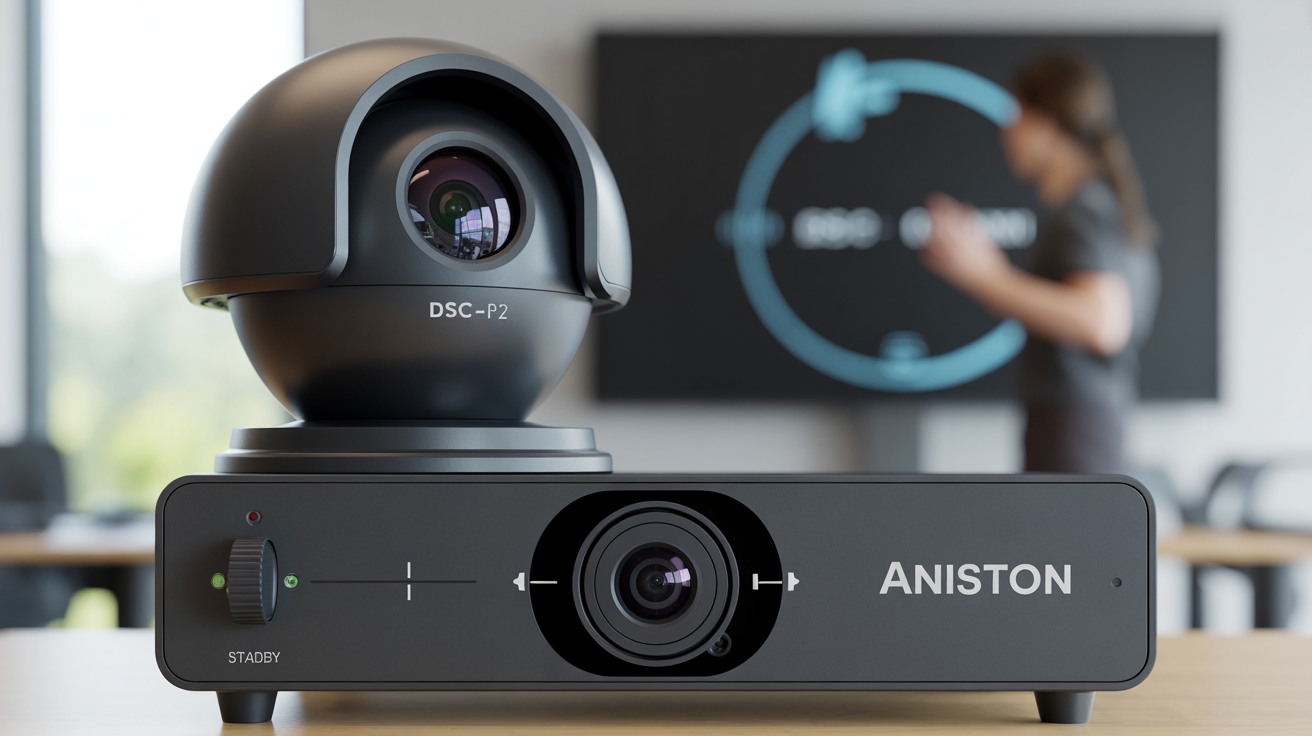

AI Tracking with Gesture-Based Switching
Built-in AI enables intelligent auto tracking, framing, and gesture recognition. The system switches dynamically between teacher and student views based on voice, motion, or hand gestures—removing the need for a remote or control panel.
Advanced Dual-Camera System for Immersive Learning & Lecture Capture
The DualSight Edu Pro 50E DSC-50E is a professional AI-powered
classroom camera system featuring two synchronized dual-lens PTZ
units—one for instructor focus and one for student coverage. Each
unit combines a high-zoom PTZ lens and a wide-angle panoramic lens,
enabling real-time dual-streaming with sharp detail and room
awareness.
With Full HD 1080p60 output, AI tracking, auto-framing, and
gesture-based control, it delivers intelligent automation without
external hardware—ideal for hybrid classrooms, training
environments, and educational AV setups.
Effortless IP Connectivity & Intelligent PoE+ Deployment
The DualSight Edu Pro 50E DSC-50E streamlines installation with a
single RJ45 connection that supports both
PoE+ power delivery and
IP-based video streaming. Designed for hybrid
classrooms and training environments, it supports leading streaming
protocols like RTMP, RTSP, RTMPS, SRT, and ONVIF—ensuring smooth
integration across modern AV networks.
With multiple simultaneous outputs including HDMI, USB 3.0, 3G-SDI,
and LAN, the system allows flexible deployment for in-room displays
and remote platforms alike. Whether in smart classrooms or
campus-wide lecture capture setups, the DSC-50E delivers reliable
networked AV performance with intelligent automation.
Smart Connectivity with DualSight Edu Pro 50E DSC-50E Camera System
Redefine classroom and training room performance with the
DualSight Edu Pro 50E DSC-50E from ANISTON. Designed
for intelligent learning environments, this
advanced AI camera system includes two PTZ units—each combining a
tracking lens and a wide-angle panoramic view.
With native PoE+ and IP streaming support, along
with HDMI, USB, and 3G-SDI interfaces, it simplifies deployment
using a single cable while offering maximum flexibility across AV
platforms. Whether for hybrid education, live lecture capture, or
remote participation, the DSC-50E delivers effortless automation
and integration—without added complexity.
