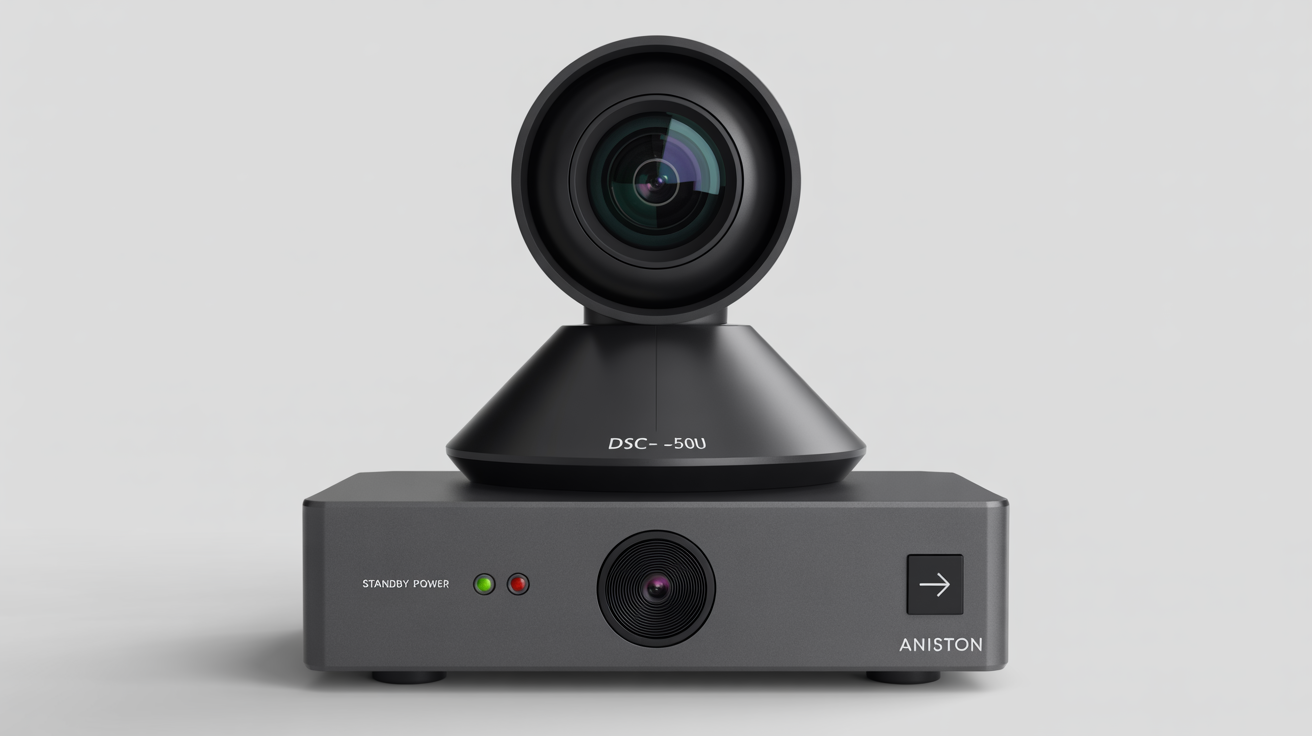

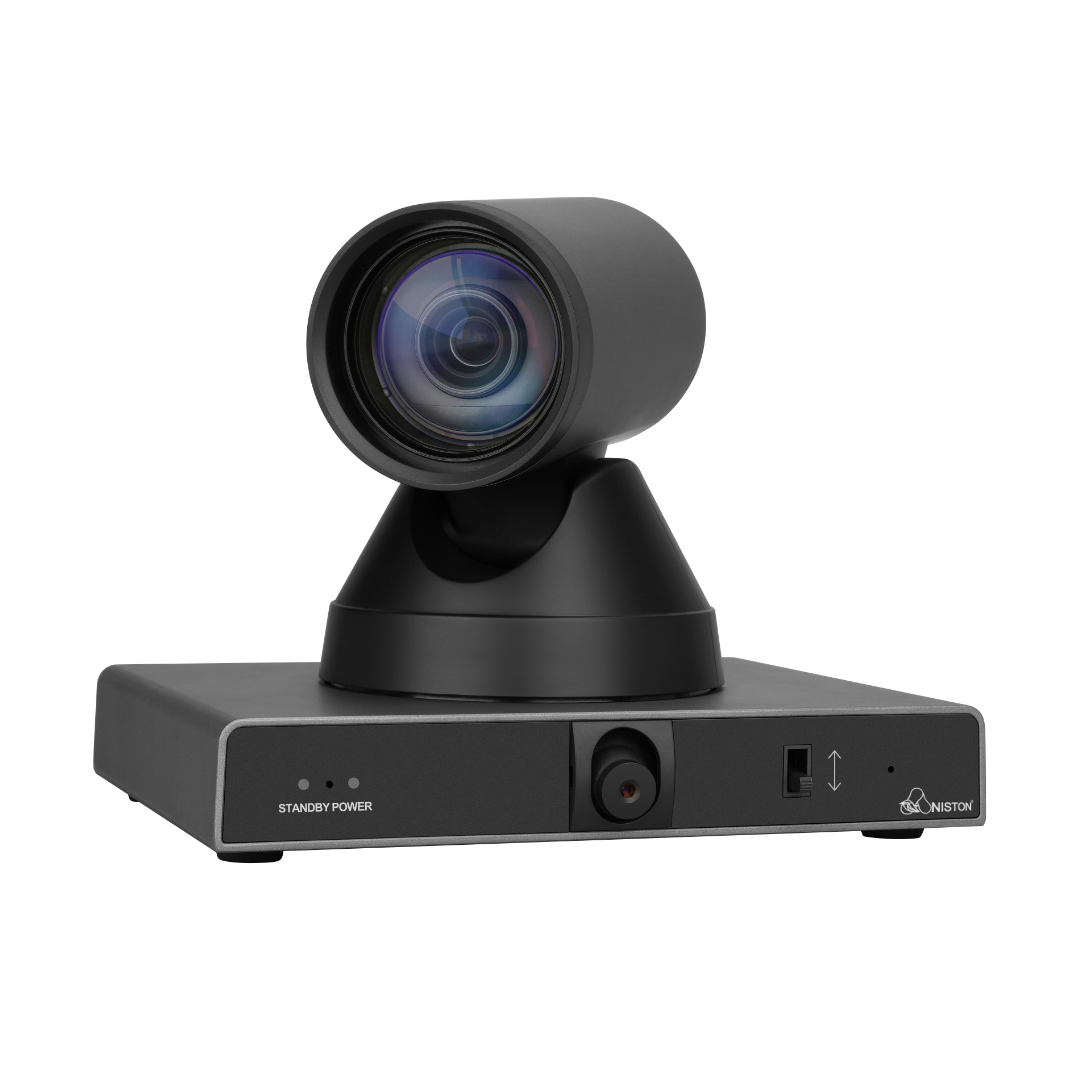

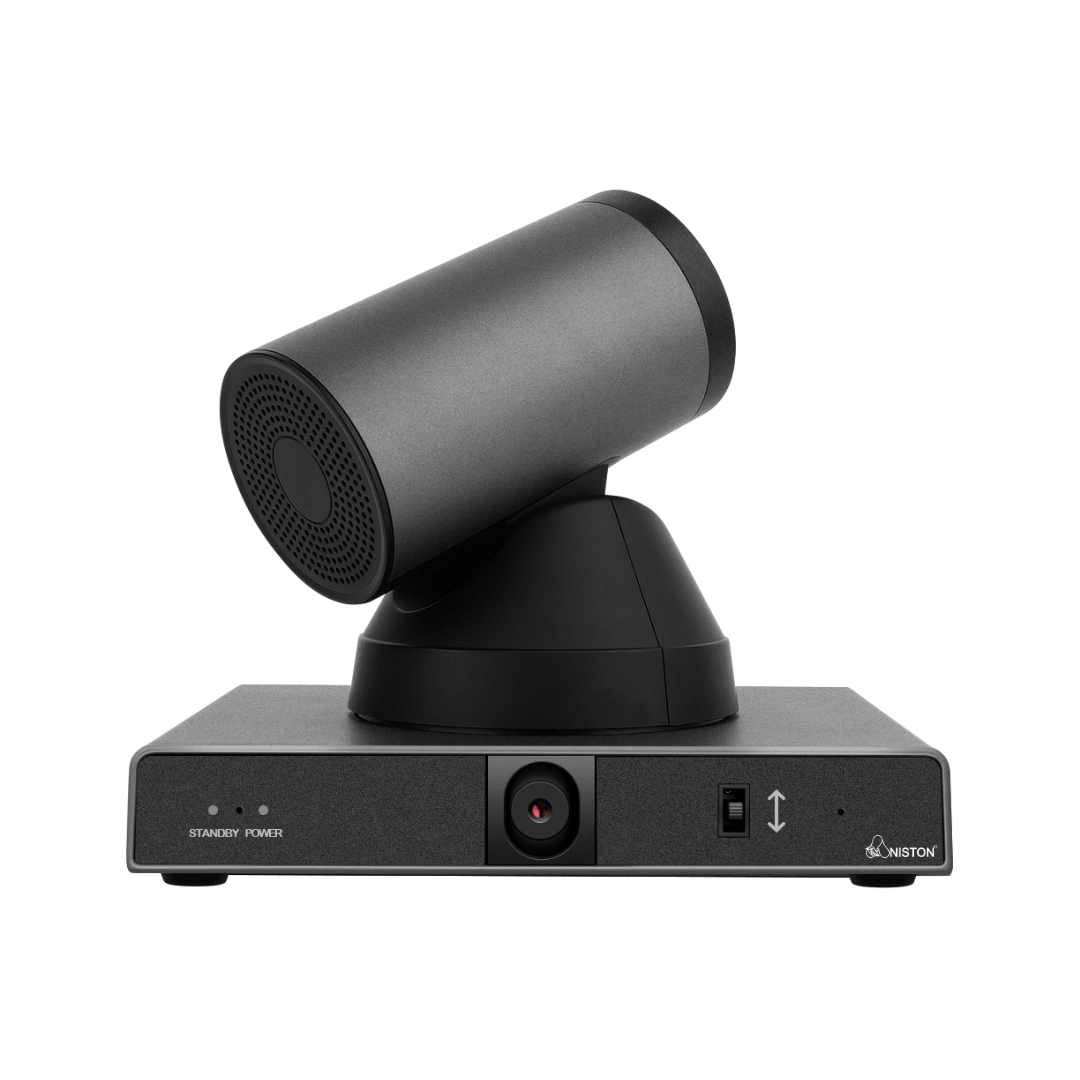

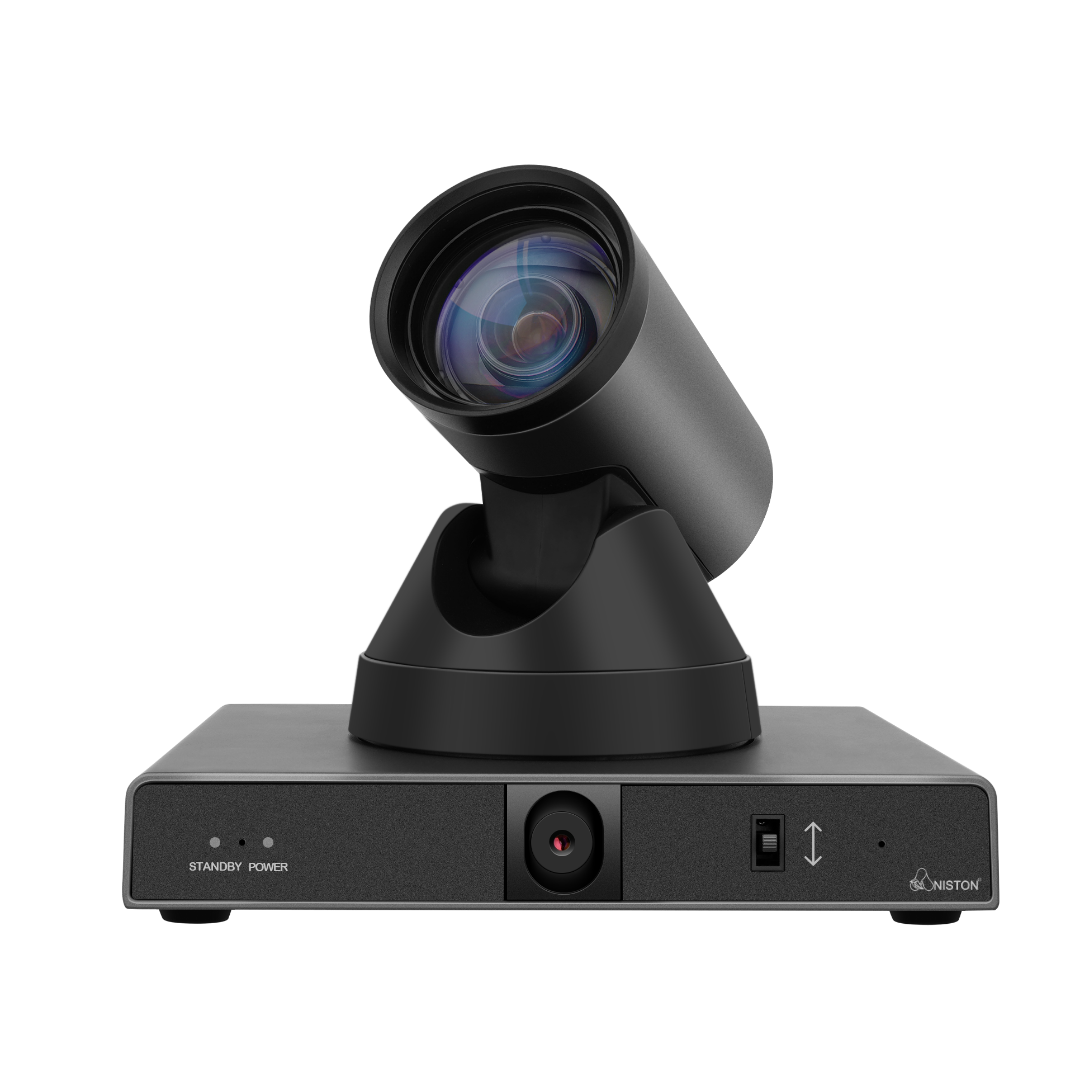

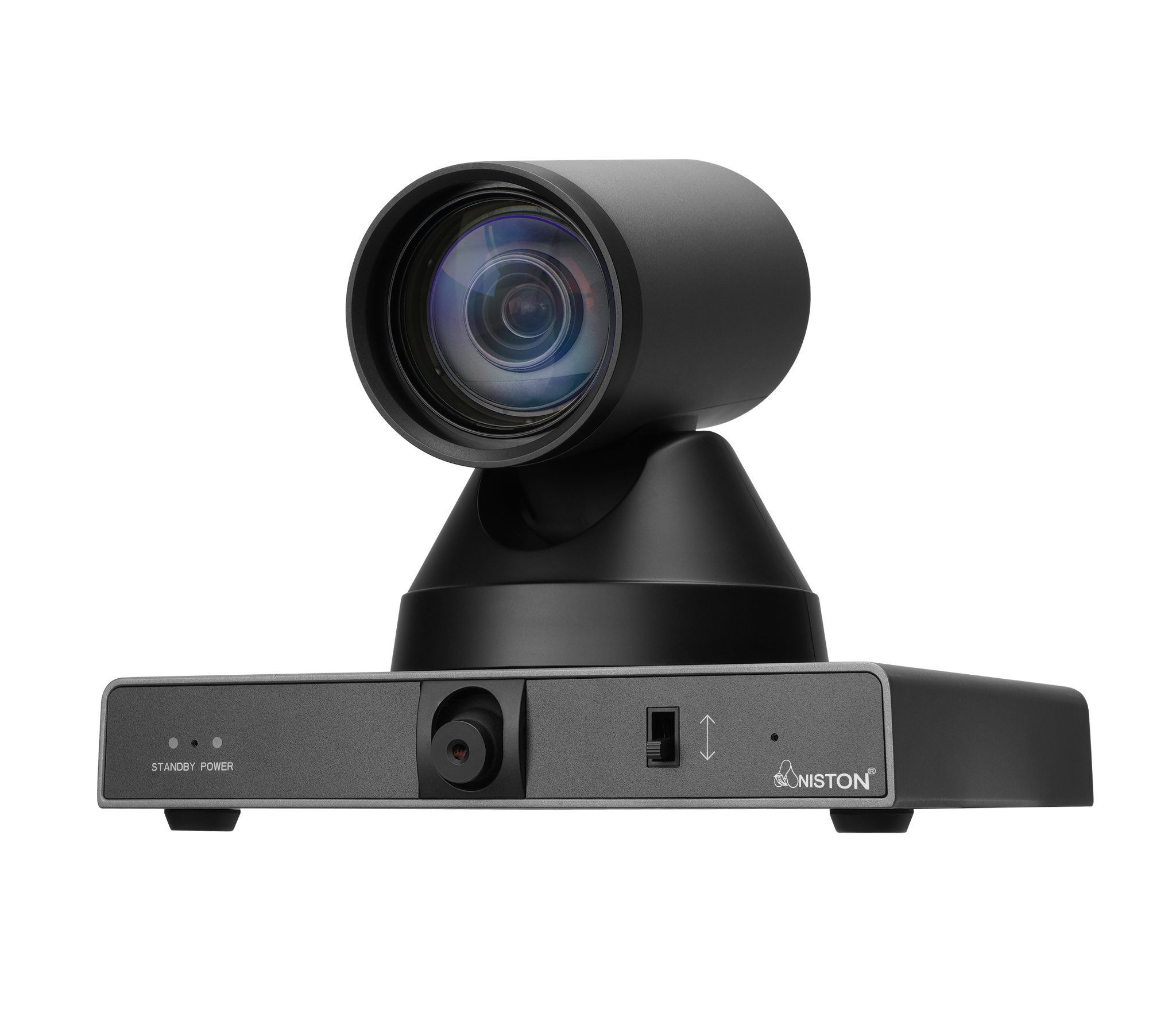

DualSight Ultra Pro 50U
AI Conference PTZ Camera
The DualSight Ultra Pro 50U is a next-generation all-in-one PTZ camera system built for high-performance video conferencing, hybrid meetings, and collaborative boardroom environments. It combines AI-powered automation, intelligent speaker framing, and robust connectivity in a single compact unit.
- AI-Powered Visual Intelligence: Equipped with real-time speaker detection, presenter and group framing, and zone-aware tracking modes—all driven by onboard AI—ensuring seamless transitions and active speaker focus.
- Dual-Lens System in One Unit: Combines a 20X optical PTZ lens with a fixed 5.7MP panoramic camera to deliver simultaneous close-up and room-wide context views—ideal for immersive conferencing.
- Comprehensive AV Integration: Supports HDMI, USB 3.0, 3G-SDI, and IP streaming with wide protocol compatibility (RTSP, RTMP, ONVIF), plus UVC plug-and-play support for Windows, macOS, and more.
With gesture-based controls, integrated omnidirectional audio pickup, PoE+ support, and full remote control capability, the is the ultimate AI conferencing camera for smart meeting spaces and enterprise environments.
Product Features
- All-in-one AI-powered PTZ system combining 20X optical zoom lens and a 5.7MP fixed panoramic lens in a single unit.
- Motorized PTZ lens with 107° horizontal field of view delivers clear, close-up speaker framing and wide participant shots.
- Fixed panoramic lens with 112° diagonal FOV provides continuous context view for AI framing and full-room visibility.
- Real-time AI speaker tracking and intelligent auto-framing to detect, follow, and smoothly transition between active speakers.
- Supports multiple AI framing modes: presenter tracking, speaker auto-framing, group framing, and custom zone-based framing.
- Gesture recognition for hands-free camera control—zoom, toggle tracking, and recall presets with simple hand motions.
- 20X optical zoom plus 16X digital zoom ensures flexible framing from near to far without image loss.
- Outputs Full HD 1080p60, 50, 30, 25 and 720p video formats across HDMI, USB 3.0, 3G-SDI, and IP interfaces simultaneously.
- USB UVC 1.1/1.5 compliant for plug-and-play compatibility with Windows, macOS, Linux, and Android systems.
- Supports MJPEG and YUY2 formats over USB, with resolutions up to 4K MJPEG and frame rates up to 30fps.
- Network streaming protocols supported: RTSP, RTMP, RTMPS, HTTP, TCP/IP, DHCP, Multicast, and ONVIF for remote access and NVR integration.
- Built-in omnidirectional microphone with 6-meter pickup radius and integrated noise suppression for clear speech capture.
- Audio input and compression via AAC format for streaming and recording clarity.
- Control interfaces: RS232, RS422/485, USB, IP; Supports VISCA, VISCA over IP, Pelco-D, Pelco-P, and ONVIF control protocols.
- 256 preset positions with ±0.1° accuracy and adjustable pan speed (0.1°–100°/s) and tilt speed (0.1°–80°/s).
- Wide pan/tilt range: ±170° pan and –30° to +90° tilt for full room coverage.
- Low-light performance down to 0.1 Lux (F1.8, AGC ON), enabling clear visuals in dim environments.
- Adjustable shutter speed from 1/60s to 1/10,000s for dynamic lighting conditions.
- Auto/manual focus and white balance modes with one-push presets for flexible deployment.
- Flip and mirror support for H/V image orientation adjustment in different installation scenarios.
- Front-facing red LED tally light indicates camera live status during broadcasting or conferencing.
- Dual power support via 12V DC input or Power over Ethernet Plus (PoE+, IEEE 802.3at) for simplified installation.
- Maximum power consumption: 17W (PoE), 16W (DC).
- Mounting options include wall, ceiling, and tripod installations (mounting kit included).
- Operating temperature range: 0°C to 40°C; storage range: –10°C to 60°C.
- Compact design with 245 × 145 × 165 mm dimensions and 1.4 kg weight.
- Certified for CE, FCC, RoHS, and BIS standards.
- Includes standard 3-year warranty with optional extension up to 5 years.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | DualSight Ultra Pro 50U |
| Camera Configuration | Single Dual-Lens Unit (PTZ + Panoramic) |
| PTZ Image Sensor | 1/2.8" CMOS, >2.13 Megapixels |
| Panoramic Image Sensor | 1/2.5" CMOS, 5.7 Megapixels |
| Field of View (PTZ) | 107° (Horizontal) |
| Field of View (Panoramic) | 112° (Diagonal), 107° (H), 80° (V) |
| Zoom | 20X Optical, 16X Digital |
| Video Outputs | HDMI, USB 3.0/2.0, 3G-SDI, IP Streaming |
| Supported Resolutions | 1080p60/50/30/25, 720p60/50, USB: MJPEG up to 4K |
| Minimum Illumination | 0.1 Lux (F1.8, AGC ON) |
| Shutter Speed | 1/60s to 1/10,000s |
| Focus Mode | Auto / Manual (PTZ), Fixed (Panoramic) |
| White Balance | Auto / Indoor / Outdoor / Manual / One Push |
| Exposure Mode | Auto / Manual |
| Pan / Tilt Range | Pan: ±170°, Tilt: –30° to +90° |
| Pan / Tilt Speed | Pan: 0.1°–100°/s, Tilt: 0.1°–80°/s |
| Preset Positions | 256, ±0.1° Accuracy |
| AI Features | Speaker Tracking, Presenter & Group Framing, Custom Zones |
| USB Protocol & Compatibility | UVC 1.1 / 1.5; Windows, macOS, Linux, Android |
| Video Compression | LAN: H.264 / H.265 / MJPEG; USB: MJPEG, YUY2 |
| Streaming Protocols | RTSP, RTMP, RTMPS, HTTP, TCP/IP, ONVIF, Multicast |

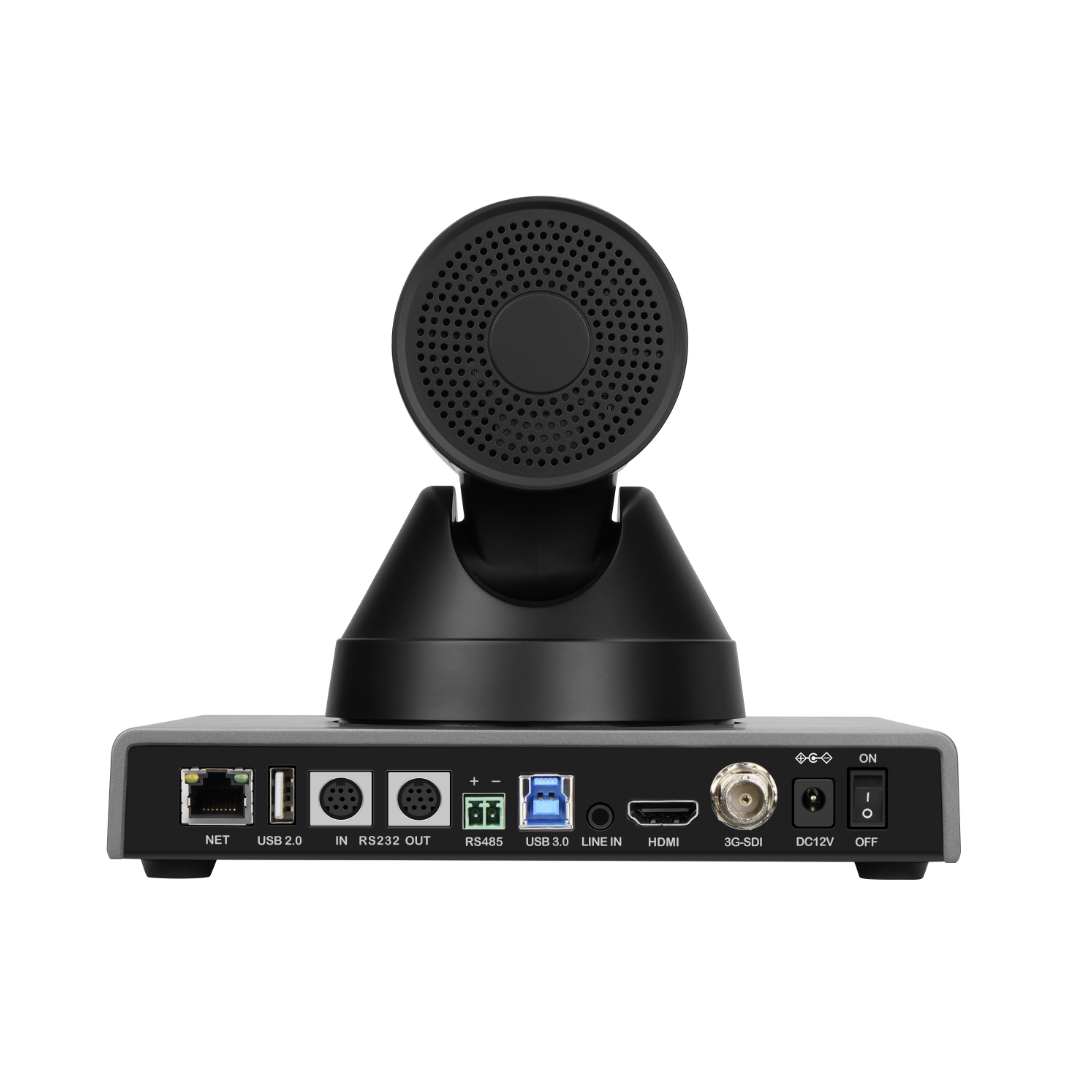

| Control Interfaces | RS232, RS422/485, IP, USB |
| Control Protocols | VISCA, VISCA over IP, Pelco-D, Pelco-P, ONVIF |
| Microphone | Omnidirectional, 6m Pickup, Noise Suppression |
| Audio Compression | AAC |
| Tally Light | Front Red LED Indicator |
| Power Input | DC 12V / PoE+ (IEEE 802.3at) |
| Power Consumption | Max 17W (PoE), Max 16W (DC) |
| Mounting Options | Wall / Ceiling / Tripod (Mount Kit Included) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –10°C to 60°C |
| Dimensions (W × D × H) | 245 × 145 × 165 mm |
| Weight | 1.4 kg |
| Certifications | CE, FCC, RoHS, BIS Certified |
| Warranty | 3 Years Standard (Extendable to 5 Years) |

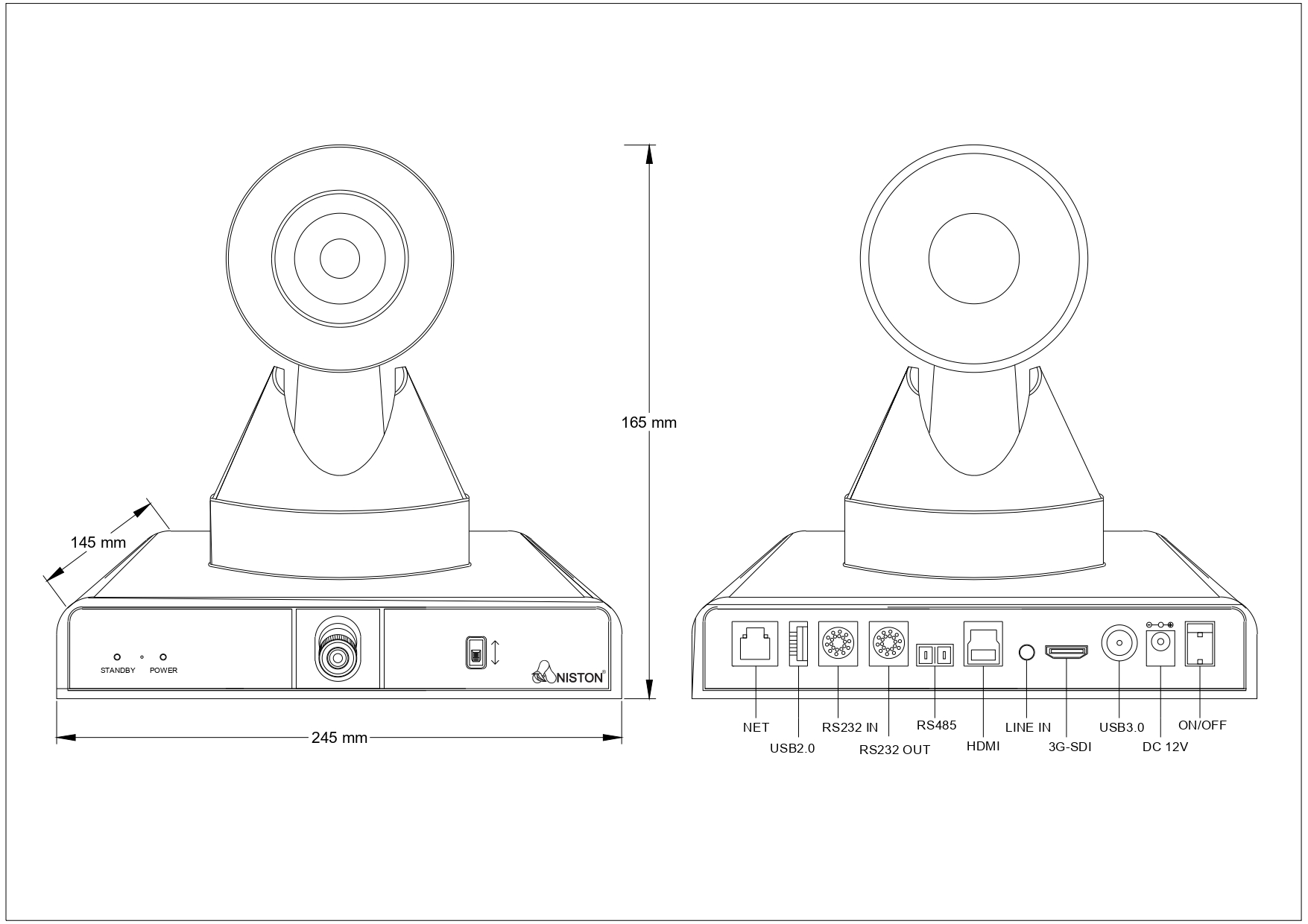

Product Dimension
Resources & Manuals
Software & Downloads
Coming Soon
Smarter Meetings with AI-Powered PTZ Video
Experience next-level conferencing clarity with the DualSight Ultra Pro —an AI-integrated PTZ camera system designed for hybrid collaboration and dynamic group engagement. Its dual-lens design captures both close-up speaker focus and full-room context simultaneously, while intelligent framing ensures smooth transitions between presenters and participants. Whether in a boardroom or hybrid workspace, the delivers immersive Full HD video and effortless camera automation—no manual control required.
Main Features

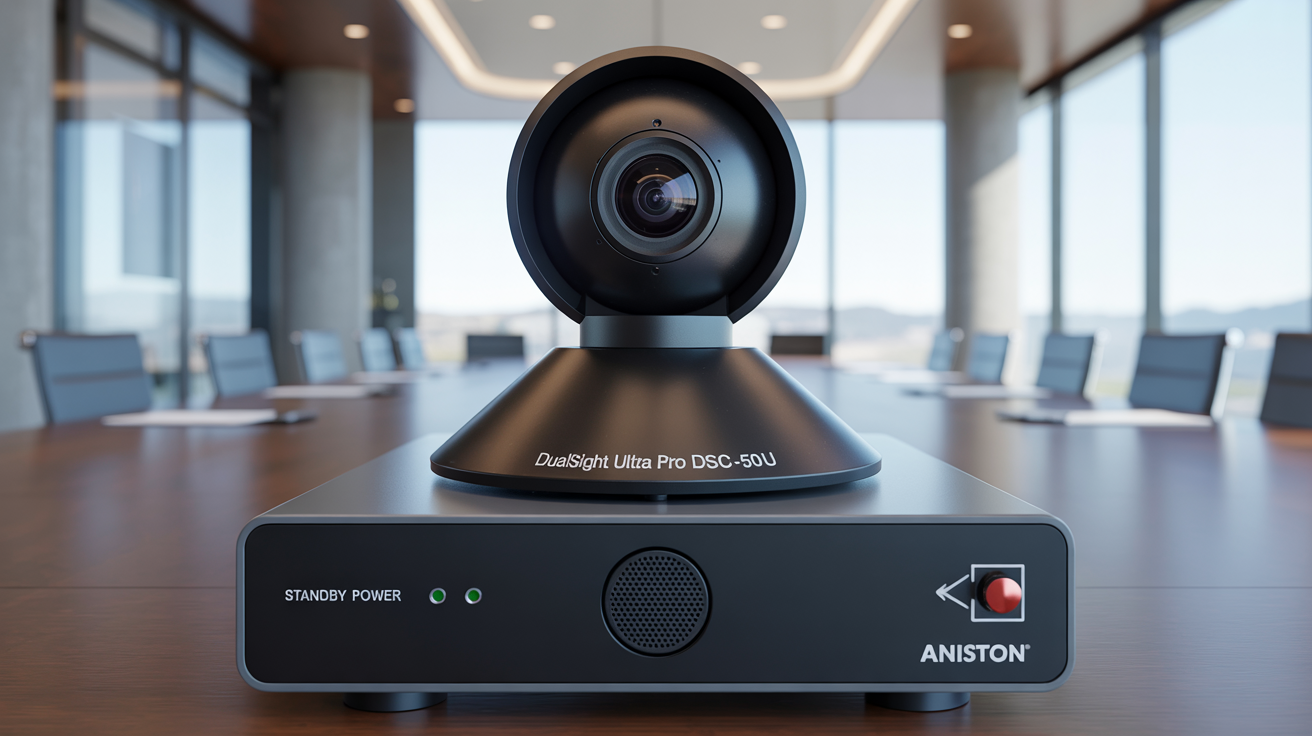

Integrated AI-Based Auto Framing
The utilizes onboard AI to intelligently detect active speakers, track presenters, and reframe shots in real time—providing a seamless, hands-free conferencing experience across dynamic meeting scenarios.

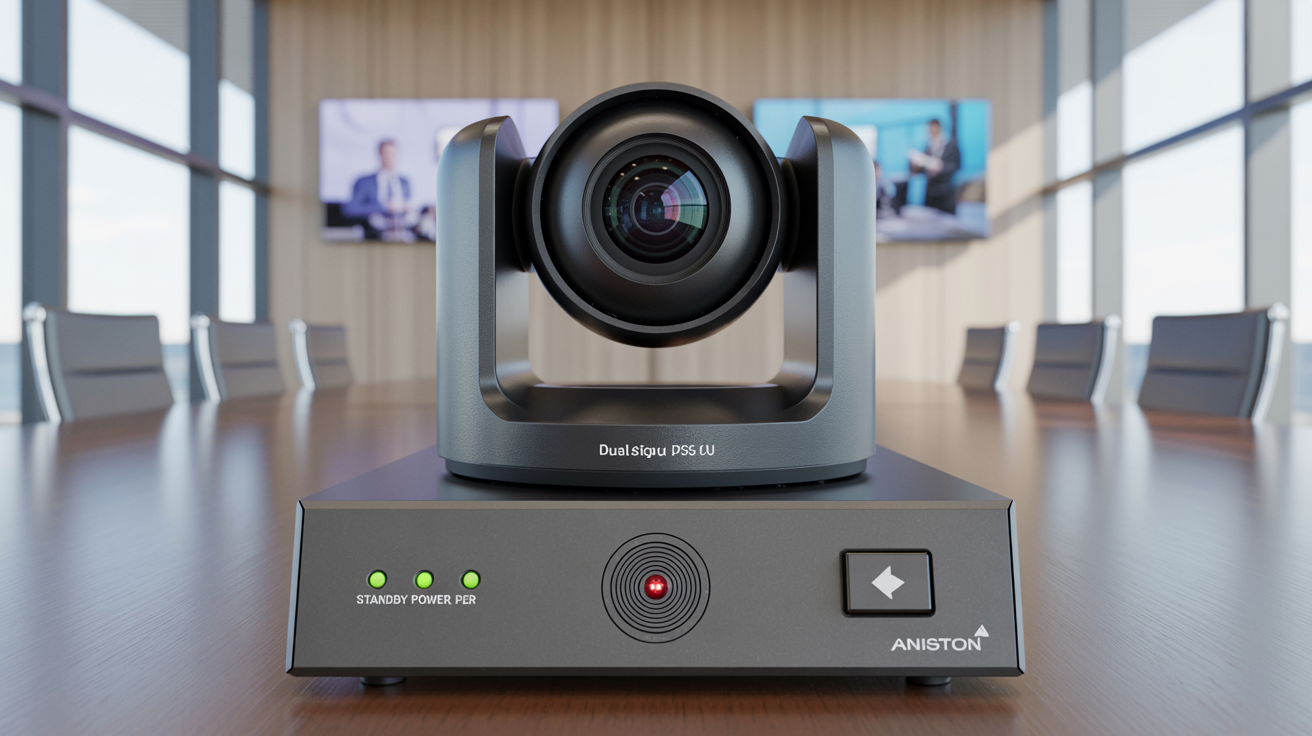

Dual-Lens Design with Full-Room Awareness
Combining a 20X optical PTZ lens with a 5.7MP panoramic camera, the delivers both precision close-ups and uninterrupted wide-angle coverage—perfect for group framing and contextual views during hybrid meetings.

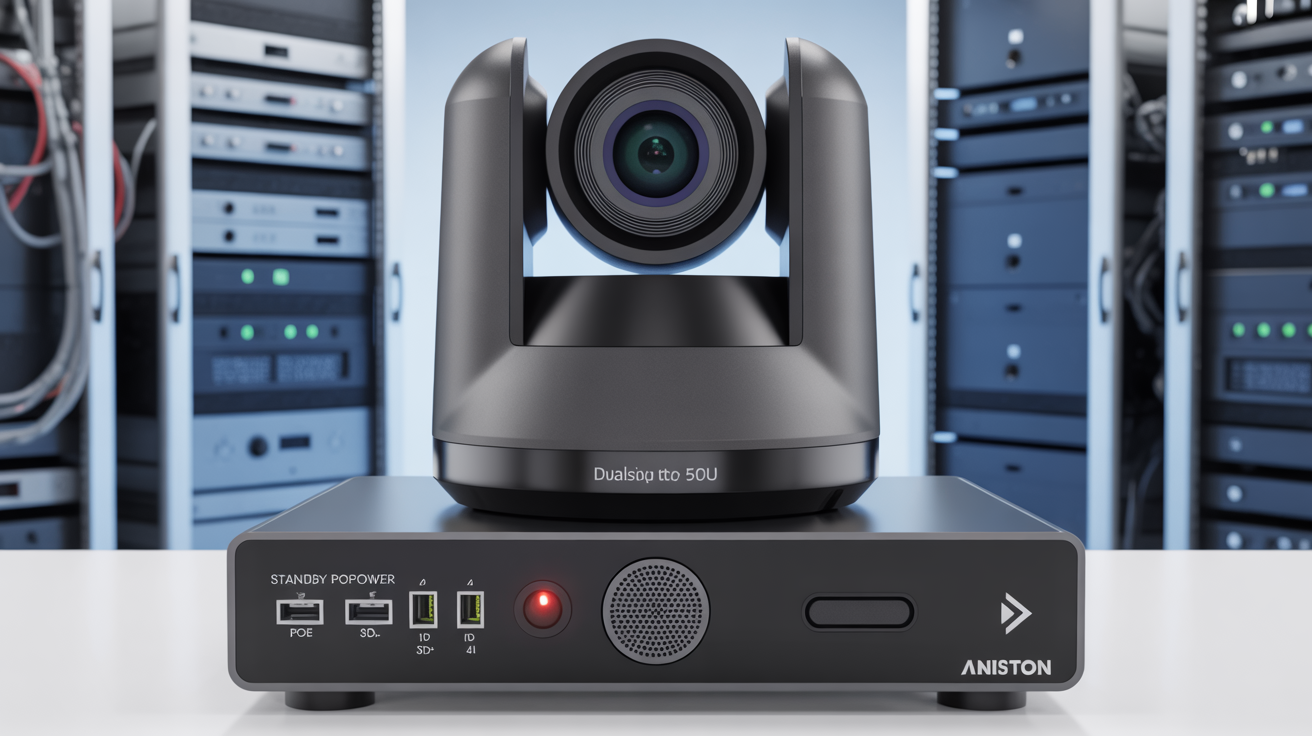

Versatile Connectivity & Easy Deployment
With HDMI, USB 3.0, SDI, and IP streaming outputs plus PoE+ power and UVC compatibility, the offers plug-and-play integration into enterprise AV systems, simplifying installation across modern workspaces.
AI-Driven PTZ Camera for Modern Collaboration Spaces
The DualSight Ultra Pro 50U is an advanced dual-lens PTZ camera engineered for high-performance hybrid meetings and enterprise communication. Featuring intelligent speaker tracking, real-time auto-framing, and simultaneous wide-angle contextual views, it transforms any boardroom or conference setup into a seamless, professional-grade video environment. With plug-and-play integration, PoE+ power, and support for all major streaming protocols, the is built for effortless deployment in smart AV systems.
Unified Streaming & Intelligent Control for Seamless AV Integration
The DualSight Ultra Pro 50U supports simultaneous multi-interface video output—HDMI, USB 3.0, 3G-SDI, and IP—making it ideal for hybrid conferencing and live-streaming environments. It offers full control flexibility through VISCA, Pelco, and ONVIF protocols over RS232, RS485, USB, and IP connections. Combined with gesture-triggered framing and AI-based automation, the provides a plug-and-play solution for professional AV installations with minimal setup and maximum adaptability.
Elevate Hybrid Meetings with DualSight Ultra Pro 50U
Transform collaboration with the AI-powered DualSight Ultra Pro 50U camera system. Designed for enterprise-level video conferencing, it combines intelligent auto-framing, dynamic speaker tracking, and dual-lens visibility in one compact solution. With real-time streaming, seamless AV control integration, and flexible mounting options, the delivers professional-grade performance for boardrooms, hybrid classrooms, and digital event spaces.
