MCP-12W MeetCam Pro
Conference PTZ Camera
The MCP-12W MeetCam Pro is a next-generation 4K60 PTZ camera engineered for high-performance conferencing, broadcasting, and immersive AV applications.
- True 4K60 Ultra HD Output: Equipped with a 1/2.5" SONY CMOS sensor, the camera delivers ultra-smooth 4K video at 60fps, ensuring lifelike visuals and crystal clarity in motion-intensive environments.
- 12X Optical + 16X Digital Zoom with Wide FoV: The precision-engineered zoom lens provides accurate framing with a wide 80.5° field of view, making it ideal for wide rooms, stage coverage, and lecture halls.
- AI Tracking, Gesture Control & Free-D Support: Built-in AI enables auto tracking, framing, and gesture-based control, while Free-D protocol integration makes it compatible with AR/VR studio tracking workflows.
Whether in boardrooms, studios, or large hybrid venues, the MCP-12W MeetCam Pro delivers cinematic video output with advanced automation and seamless AV/IP integration via HDMI, USB 3.0, 3G-SDI, and LAN.
Product Features
- True 4K60 ultra HD video output with a next-gen 1/2.5" SONY CMOS sensor for smooth, detailed visuals.
- 12X optical zoom (3.4mm–40.4mm) and 16X digital zoom for flexible and accurate wide-area framing.
- Superior low-light performance with 0.1 lux minimum illumination and advanced 2D + 3D digital noise reduction.
- Simultaneous video output over HDMI 2.0, USB 3.0, 3G-SDI, and LAN (IP streaming) for full system compatibility.
- Supports RTMP, RTSP, RTMPS, SRT, Onvif, HTTP, TCP/IP, and DHCP for seamless network-based AV workflows.
- Free-D protocol integration for AR/VR and virtual studio tracking system compatibility.
- Built-in AI features: intelligent auto tracking, face detection, auto framing, and gesture-based control.
- Hands-free operation with gesture support for zoom control, tracking toggle, and preset recall.
- Stores up to 255 presets via IP/Serial and 9 via IR remote, with ±0.1° accuracy.
- High-speed, low-noise PTZ motion with pan and tilt speeds from 1°/s to 80°/s and 60°/s respectively.
- Pan range of 355°, tilt range from -30° to +90°, with horizontal/vertical flip support.
- LAN video compression support for H.264 and H.265, and USB formats include MJPEG and YUY2.
- 3.5mm stereo audio input with AAC encoding for synchronized AV applications.
- Web GUI for live view, remote setup, firmware updates, and IP configuration.
- Control protocol support includes VISCA, VISCA over IP, PELCO-D, PELCO-P, ONVIF, and UVC 1.1.
- Control interfaces include RS232, RS422, USB, IR remote, and Gigabit Ethernet (RJ45).
- Integrated tally light for live or recording visual indication during production.
- IEEE 802.3af PoE support for clean, single-cable installation and power delivery.
- Low power draw with max consumption of 12W; powered via DC 12V ±10% or PoE.
- Compact and lightweight body: 134mm × 174mm × 187mm, approx. 1.2 kg.
- Ships with DC adapter, IR remote, USB and RS-232 cables, wall/ceiling mount brackets, and user manual.
- Ideal for enterprise boardrooms, classrooms, XR studios, lecture capture, and virtual AV production.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | MCP-12W |
| Series | MeetCam Pro |
| Image Sensor | 1/2.5" SONY CMOS |
| Effective Pixels | 8.29 Megapixels |
| Optical Zoom | 12X (f = 3.4mm–40.4mm, F1.8–F3.6) |
| Digital Zoom | 16X |
| Minimum Illumination | 0.1 Lux (F1.8, AGC ON) |
| S/N Ratio | ≥ 50 dB |
| Shutter Speed | 1/50s to 1/10000s |
| Aperture | F1.8 ~ F3.6 |
| Max Output Resolutions | HDMI: 3840×2160@60fps; SDI: 1080p@60fps; USB: 3840×2160@30fps |
| Video Formats | 4K: 60/59.94/50/30/25/29.97 fps; 1080p: 60/59.94/50/30/25/29.97 fps; 720p: 60/50 fps |
| Viewing Angle (H/V/D) | H: 58.7°–3.2° / V: 32.2°–1.8° / D: ~65° typical |
| Pan Range | 355° |
| Tilt Range | -30° to +90° |
| Pan Speed | 1° to 80°/s |
| Tilt Speed | 1° to 60°/s |
| Preset Positions | 255 presets (via IP/Serial), 9 presets (IR remote) |
| Preset Accuracy | ±0.1° |
| Image Flip | Supported (H/V Flip) |
| Tally Light | Yes (Front Red LED Indicator) |
| AI Functions | Auto Tracking, Auto Framing, Gesture Recognition |
| Gesture Control | Yes (Zoom, Tracking Toggle, Preset Recall) |
| Video Compression (LAN) | H.264 / H.265 |
| Video Compression (USB) | MJPEG / YUY2 |
| USB Protocol | UVC 1.1, UAC 1.0 |
| USB Compatibility | Windows, macOS, Linux, Android |
| USB Output Resolutions | MJPEG: up to 3840×2160, YUY2: up to 1920×1080 |
| USB Frame Rate | Up to 60fps (resolution dependent) |
| Network Protocols | TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP |
| Audio Input | 1x Line-in (3.5mm stereo jack) |
| Audio Compression | AAC |
| Audio Bitrate | 48KHz / 44.1KHz |
| Control Interfaces | RS232 / RS422 / IP / IR / USB |
| Control Protocols | VISCA, VISCA over IP, PELCO-D, PELCO-P, ONVIF, UVC 1.1 |

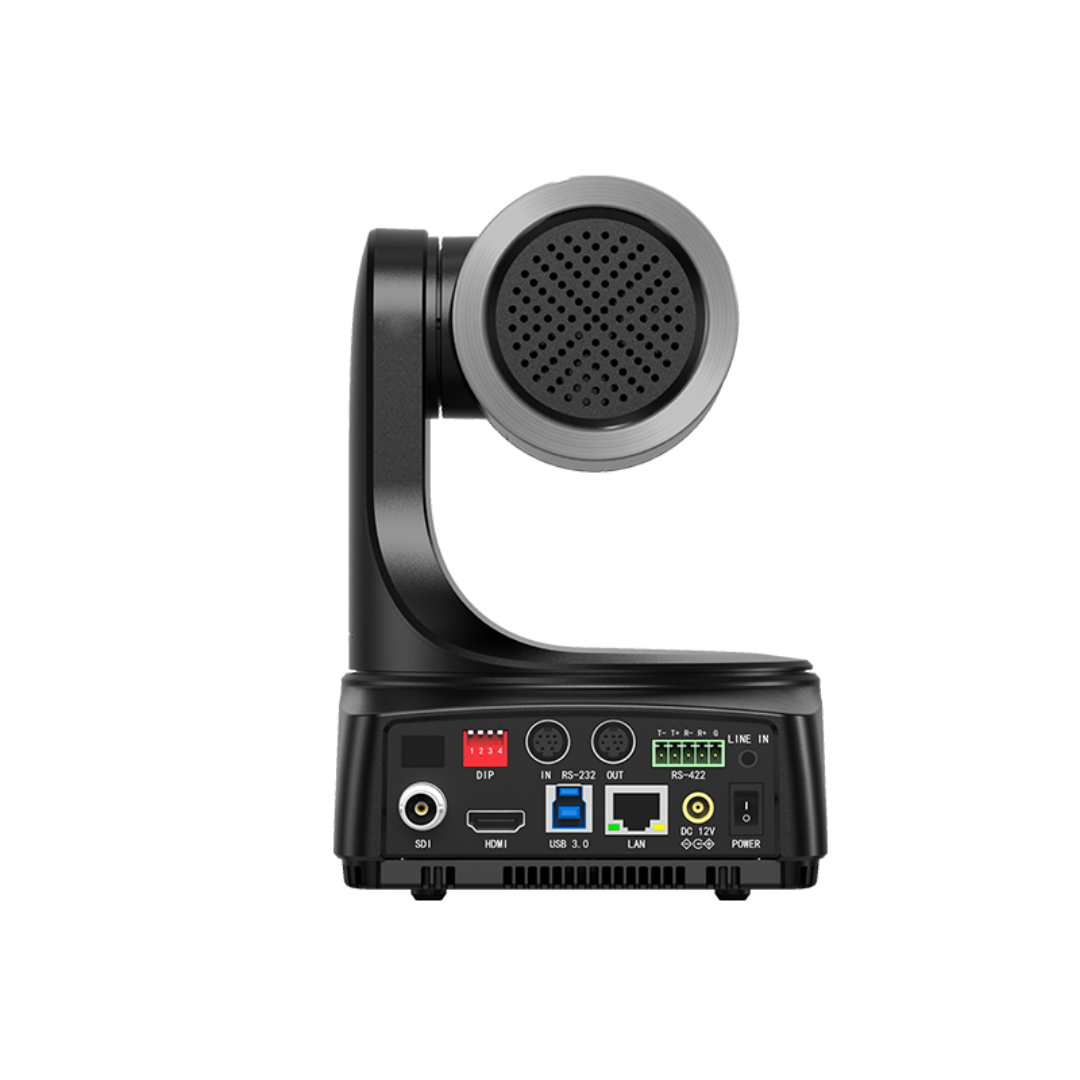

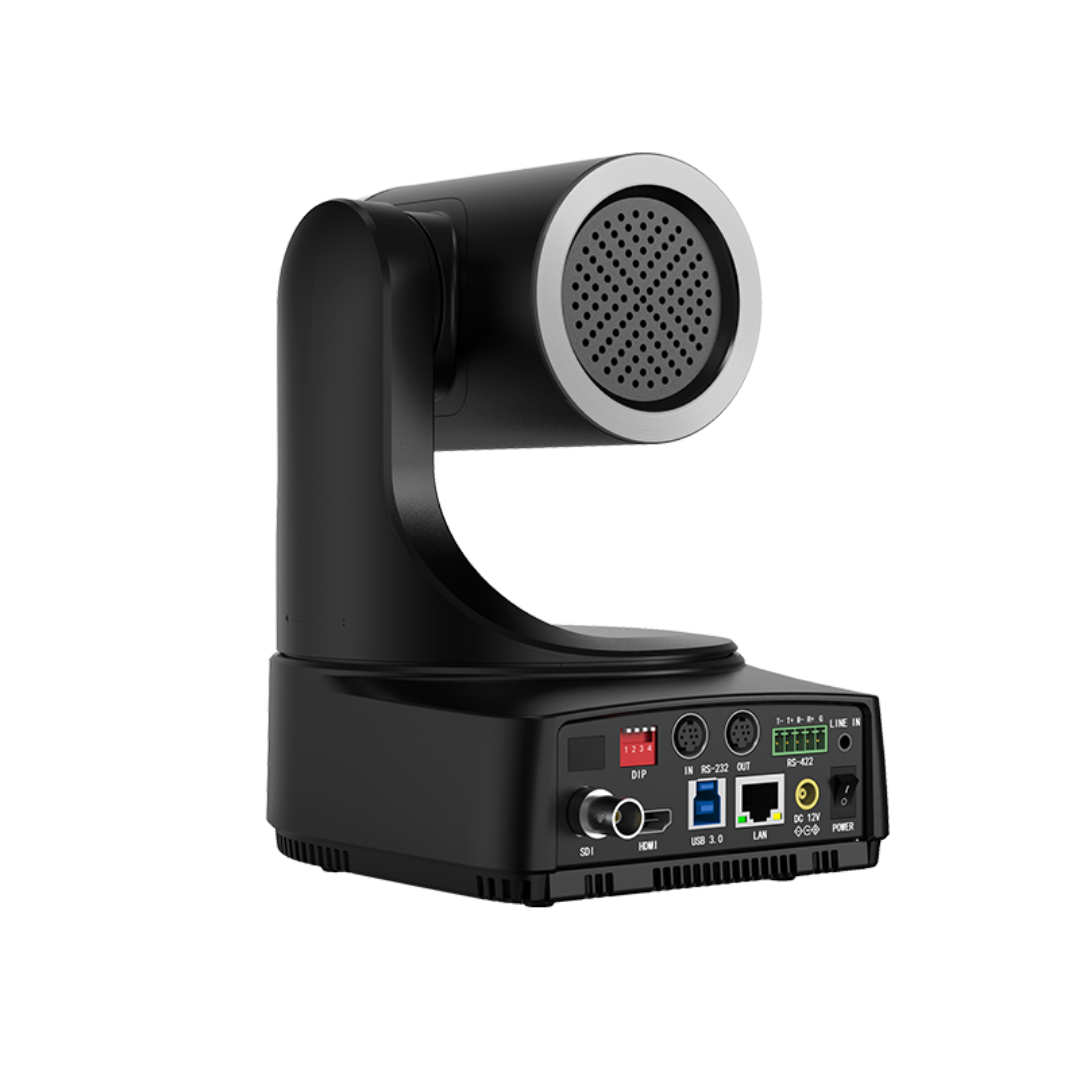

| Video Output Interfaces | HDMI 2.0 / USB 3.0 / 3G-SDI / RJ45 (LAN) |
| PoE Support | IEEE 802.3af |
| Power Input | DC 12V ±10% |
| Power Consumption | Max 12W (PoE or DC) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Dimensions (W×D×H) | 134mm × 174mm × 187mm |
| Weight | Approx. 1.2 kg |
| Color Options | Black / White (Optional) |
| Included Accessories | DC 12V Adapter, IR Remote, USB Cable, RS-232 Cable, Ceiling Bracket, Wall Bracket |
Product Dimension
Resources & Manuals
Software & Downloads
Coming Soon
MCP-12W MeetCam Pro – Intelligent 4K60 PTZ Camera for Immersive AV Experiences
The MCP-12W MeetCam Pro is a high-performance PTZ camera built to meet the needs of modern conferencing, hybrid classrooms, and professional live production. Powered by a 1/2.5” SONY CMOS sensor, it delivers ultra-smooth 4K60 video with exceptional clarity and motion precision. With 12X optical zoom, a wide 80.5° field of view, and integrated AI capabilities like auto tracking, gesture control, and Free-D protocol, it offers dynamic framing and intuitive operation. Its seamless multi-interface output over HDMI, USB 3.0, 3G-SDI, and IP ensures easy deployment across a wide range of AV environments—making it the ideal solution for immersive, future-ready communication.
Main Features

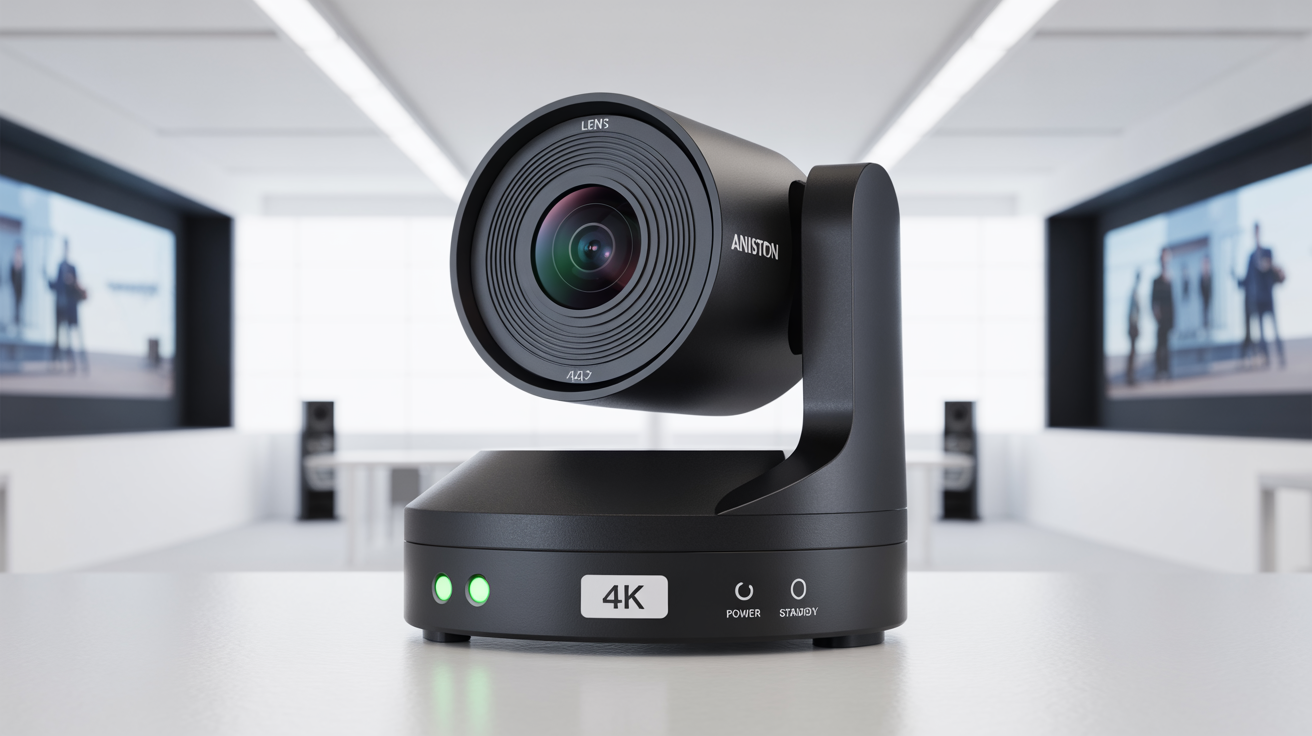

True 4K60 Performance with Wide-Angle Optics

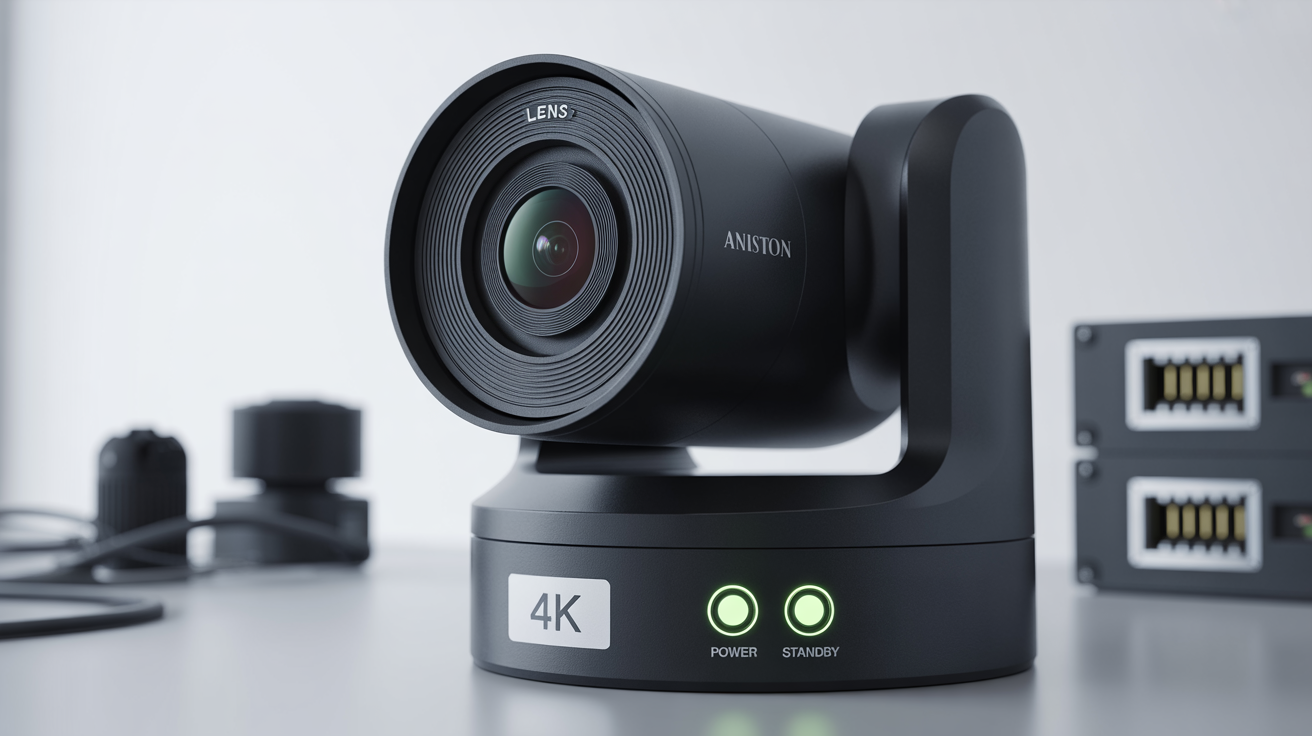

The MCP-12W delivers ultra-smooth 4K video at 60fps using a 1/2.5" SONY CMOS sensor. With a wide 80.5° field of view and 12X optical zoom, it captures every detail across lecture halls, XR studios, and hybrid meeting spaces.
Seamless Connectivity with PoE & IP-Based Streaming
Designed for modern AV integration, the MCP-12W supports HDMI, USB 3.0, 3G-SDI, and LAN outputs. With PoE (IEEE 802.3af) and IP protocols like RTMP, RTMPS, SRT, and Onvif, it ensures reliable and efficient deployment.
AI Tracking with Gesture Recognition & Free-D Support

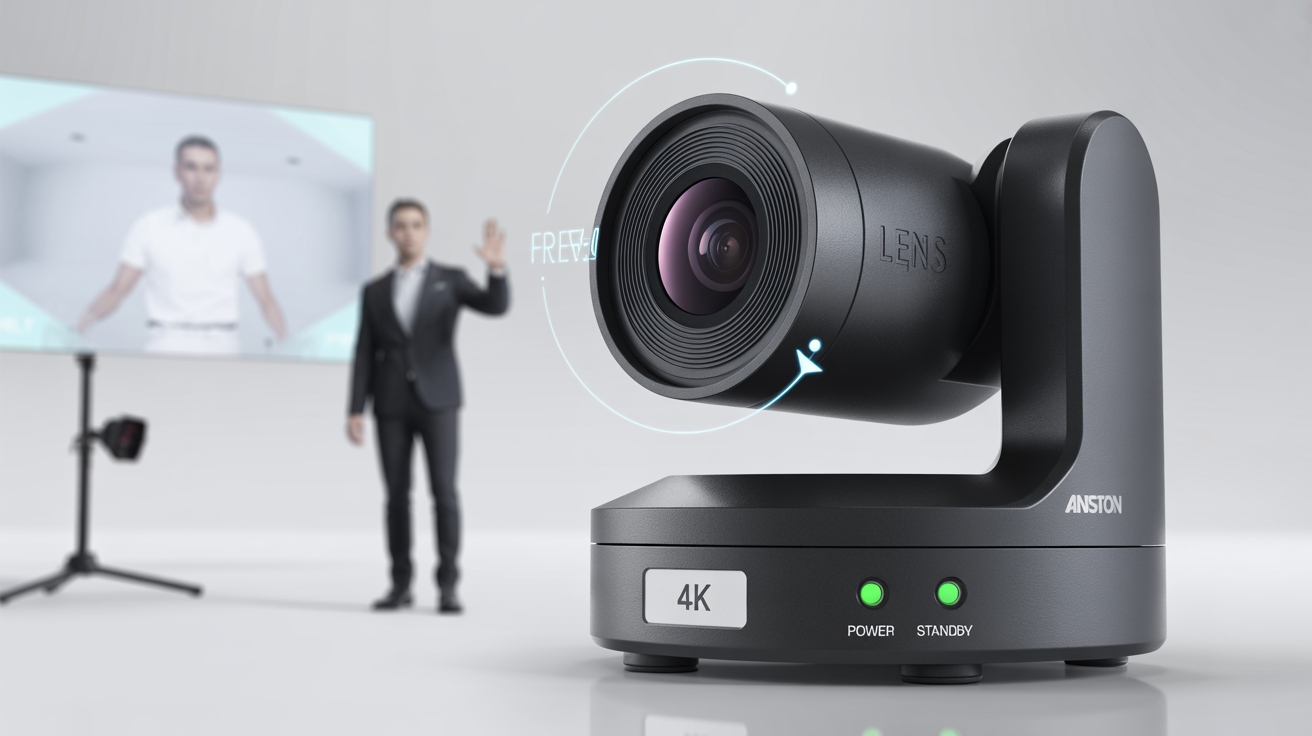

AI-driven features like auto tracking, face detection, and gesture control enable intuitive operation. With Free-D protocol compatibility, it seamlessly integrates into AR/VR studio environments and virtual production workflows.

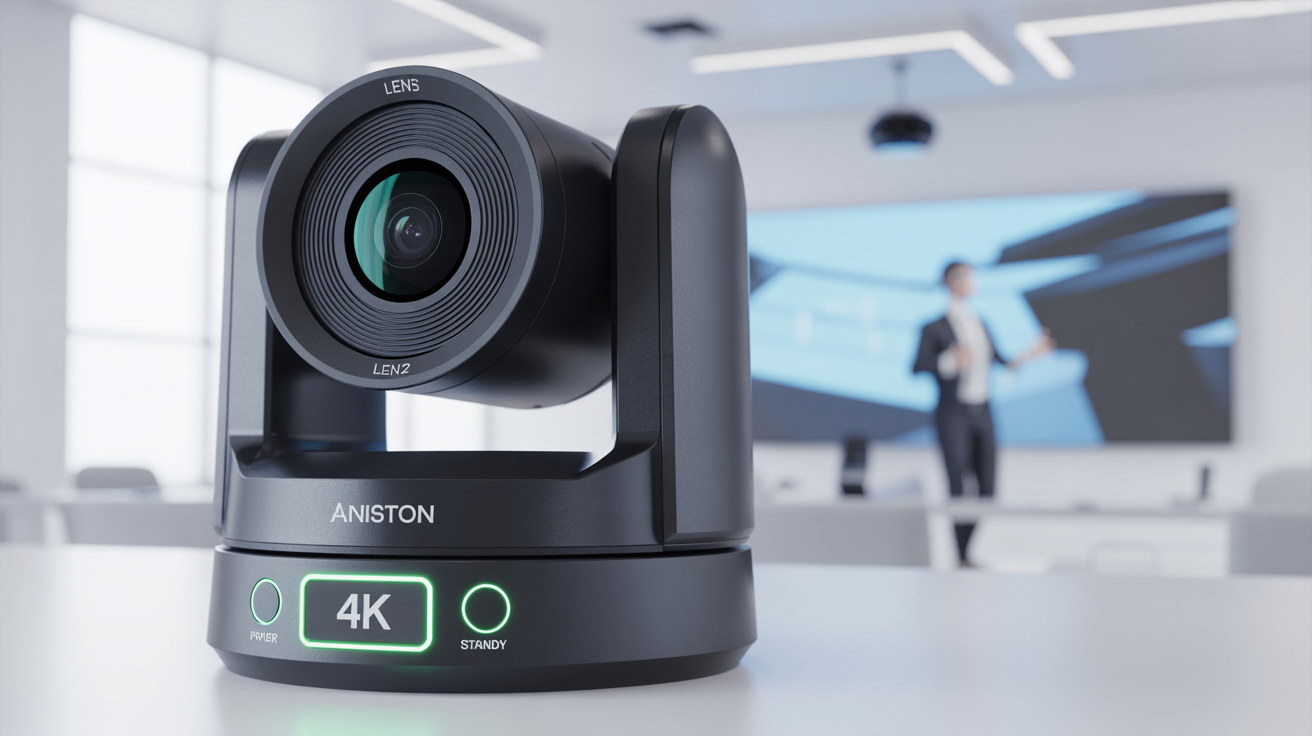

Premium 4K60 Wide-Angle Imaging for Professional Communication
The MCP-12W MeetCam Pro PTZ Camera delivers stunning 4K video at 60fps using a 1/2.5" SONY CMOS sensor, offering lifelike visuals for boardrooms, classrooms, and broadcast setups. With a wide 80.5° field of view and 12X optical zoom, it captures large spaces with exceptional clarity and precision. Designed for seamless AV integration, this AI-powered camera features smart tracking, auto framing, and gesture recognition—bringing polished, intuitive control to modern conferencing environments.
Seamless IP Streaming & PoE Integration for Smarter AV Setups
The MCP-12W MeetCam Pro PTZ Camera streamlines deployment with a single RJ45 connection delivering both power (PoE) and real-time IP streaming. Supporting industry-standard protocols like RTMP, RTMPS, SRT, Onvif, and DHCP, it ensures reliable networked AV integration across a variety of platforms. With simultaneous output through HDMI, USB 3.0, 3G-SDI, and LAN, and backed by AI-driven tracking and gesture control, it offers an efficient and scalable solution for modern classrooms, hybrid meeting spaces, and live production setups.
Advanced AV Integration with MCP-12W for Unified Communication
Simplify AV integration with the MCP-12W MeetCam Pro PTZ Camera by ANISTON. Purpose-built for collaborative and hybrid environments, this advanced camera delivers smooth 4K60 video and AI-enhanced framing to keep speakers in focus throughout every session. With integrated PoE and IP streaming support, it operates over a single network cable—reducing setup time and minimizing cable clutter. Perfect for modern classrooms, studios, and meeting spaces, the MCP-12W delivers smart connectivity and crystal-clear performance with effortless deployment.
