AeroTone
Dante PoE Ceiling Speaker

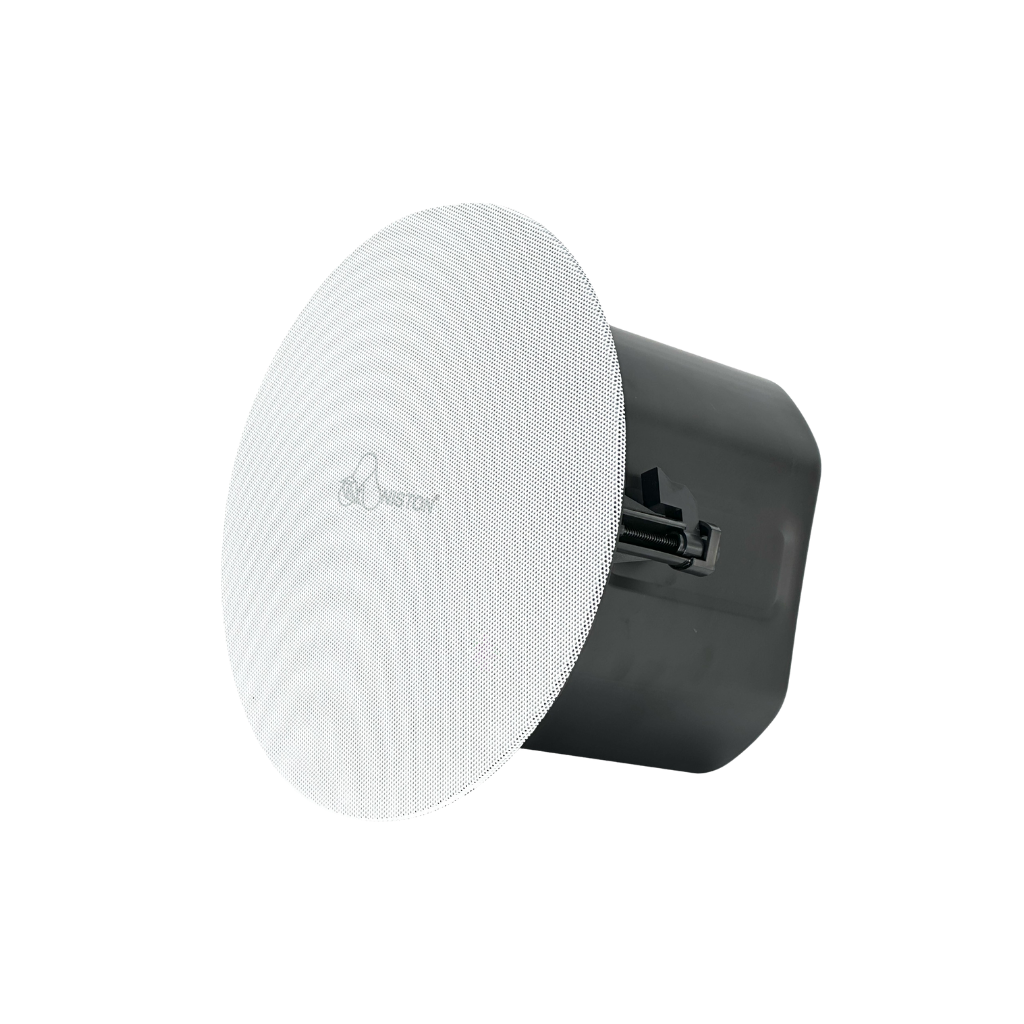

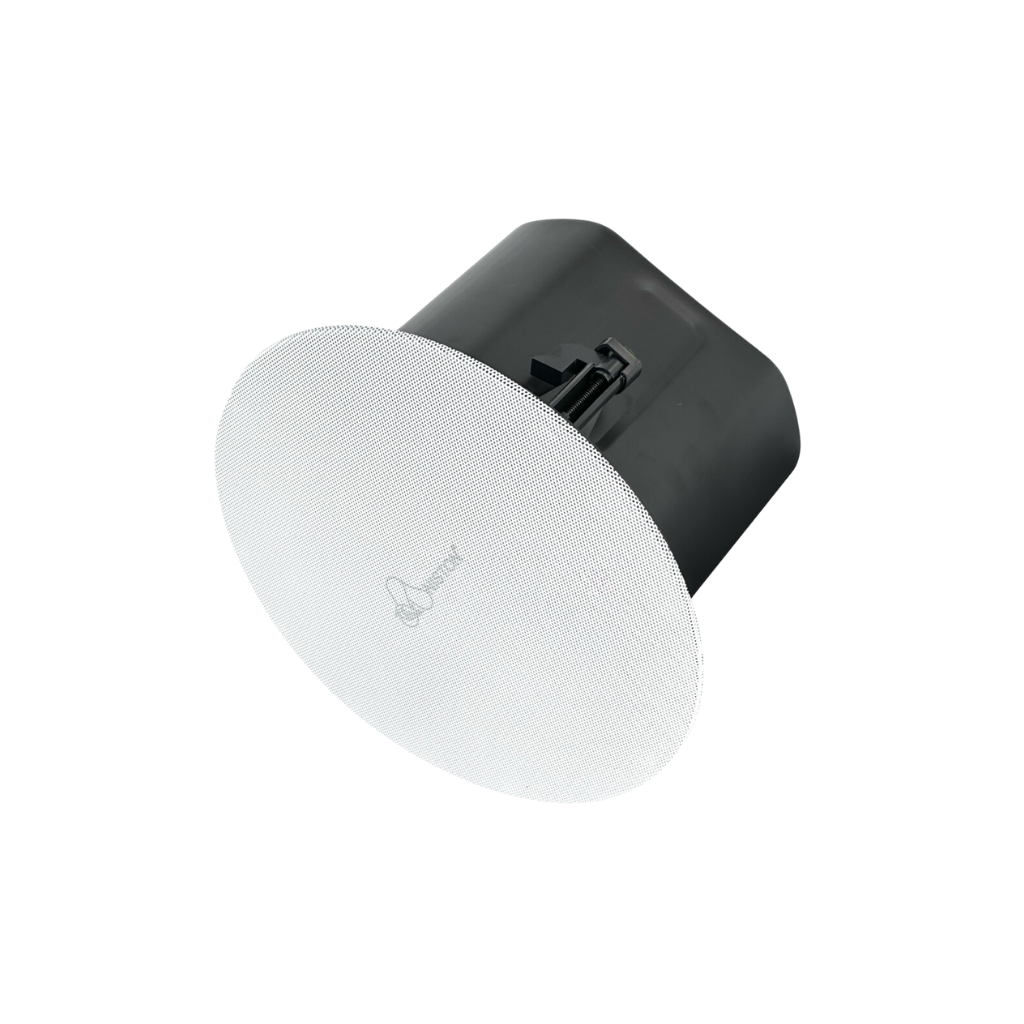

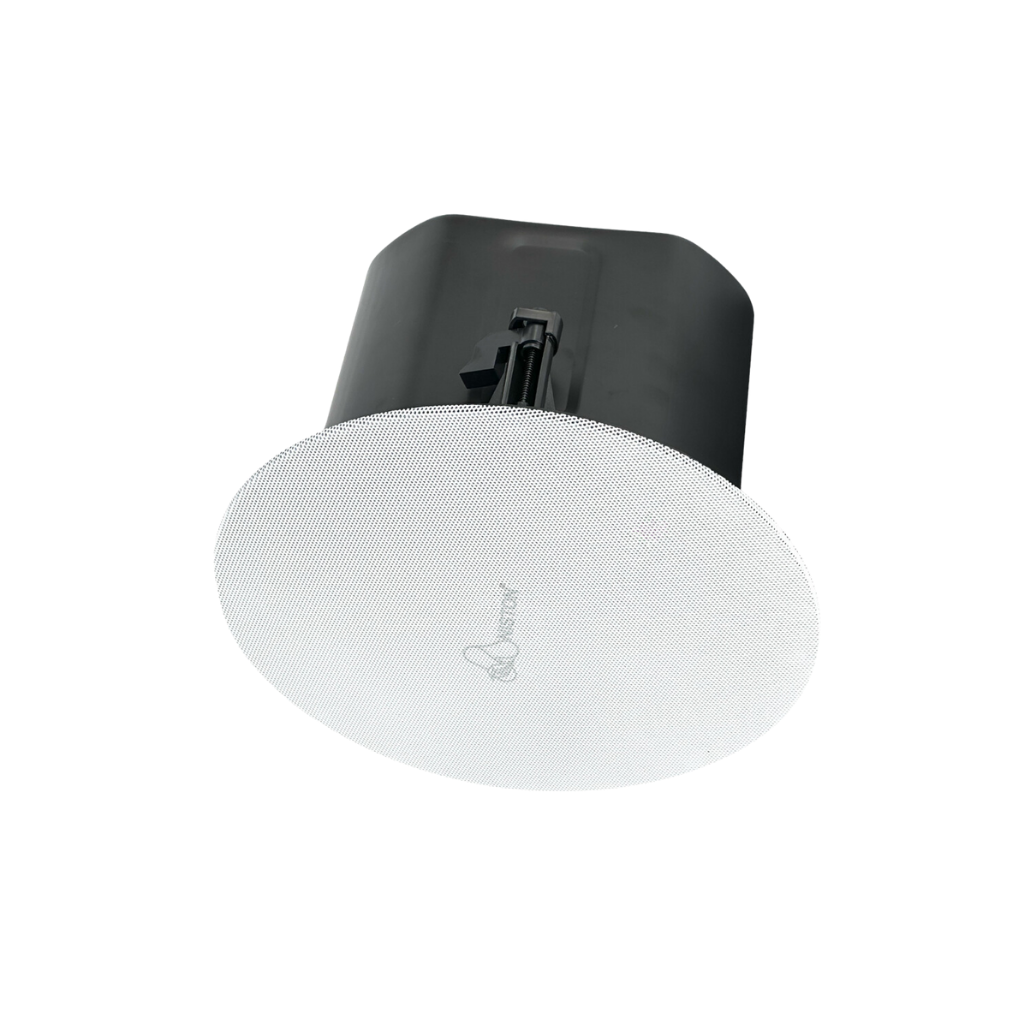

The AeroTone Ceiling Speaker is a high-performance Dante-enabled PoE speaker designed for commercial and residential environments.
- Advanced Microphone Array Technology: Equipped with a 2x2 channel configuration for flexible audio routing, ensuring clear and precise sound transmission in Dante network environments.
- Wide Frequency Response: Covers a range of 65 Hz to 20 kHz (-10 dB), delivering deep bass and crisp high frequencies for a full-spectrum audio experience.
- Powerful Sound Output: Generates a peak sound pressure level (SPL) of 97dB, making it suitable for large spaces requiring powerful, immersive audio.
Whether for boardrooms, retail stores, or professional AV installations, the AeroTone Ceiling Speaker delivers premium audio performance.
Product Features
- High-performance 6-inch composite diaphragm waterproof woofer for deep, immersive bass.
- 1-inch composite diaphragm tweeter for crisp and clear high-frequency sound reproduction.
- 65Hz – 20kHz frequency response, ensuring a balanced and natural audio experience.
- 97dB peak Sound Pressure Level (SPL) for powerful sound output, even in large spaces.
- Seamless Dante audio integration with RJ45 connectivity for networked audio distribution.
- PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) support, minimizing cabling and simplifying installation.
- Class-D amplifier technology for efficient power consumption and enhanced sound clarity.
- Built-in DSP processing, including EQ, Enhancer, Volume, PEQ, Ducker (Noise Gate), Mixer, and Delay.
- 160° conical sound coverage angle (-6dB @ 1-4kHz) for wide and even dispersion.
- IP5X dust protection for long-lasting durability in various indoor environments.
- Compact, flush-mounted ceiling design, blending seamlessly into any professional AV setup.
- Remote control and WebUI support for easy configuration and management.
- Optimized for conference rooms, retail spaces, boardrooms, and commercial AV applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Frequency Response (-10 dB) | 65Hz – 20kHz |
| Maximum SPL (Peak) | 97dB SPL |
| Coverage Angle (-6dB 1-4kHz) | 160° conical |
| Amplifier Type | Class-D |
| Power Rating (Continuous) | 15W (PoE+ IEEE 802.3at), 6W (PoE IEEE 802.3af) |
| Power Rating (Dynamic) | 15W (PoE+ IEEE 802.3at), 6W (PoE IEEE 802.3af) |
| Signal Processing | EQ/Enhancer, Volume, PEQ, Ducker (Noise Gate), Mixer, Delay, Speaker EQ (6-band) |
| Sampling Rate | 48kHz |
| Speaker Components | 6-inch composite diaphragm waterproof woofer, 1-inch composite diaphragm waterproof tweeter |
| Audio Interface | 1 RJ45 Port for Dante Audio Transmission & PoE |
| Cable Requirements | CAT5e or higher (STP) |
| Networking | Dante Audio / Dante Control, Remote Control, WebUI |
| Cooling Method | Natural Convection |
| Protection Rating | IP5X (Dust Protection) |
| Mounting | Ceiling Mount |
| Weight | <3.5kg |
| Dimensions | 279mm Diameter, 176mm Depth |
| Power Consumption | Maximum <-105 dB at +4 dBu 1kHz Input Signal |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | 30% – 90% (No Condensation) |
| Storage Temperature | -20°C – 60°C |
| Storage Humidity | 20% – 90% (No Condensation) |
| Indicator Lights | Power (Front), SYNC (RJ45), LINK/ACT (RJ45) |
| Operator Controls | DIP Switch 8P x 1 |
| Cascade Capability | Unlimited (Dante Audio Cascade) |

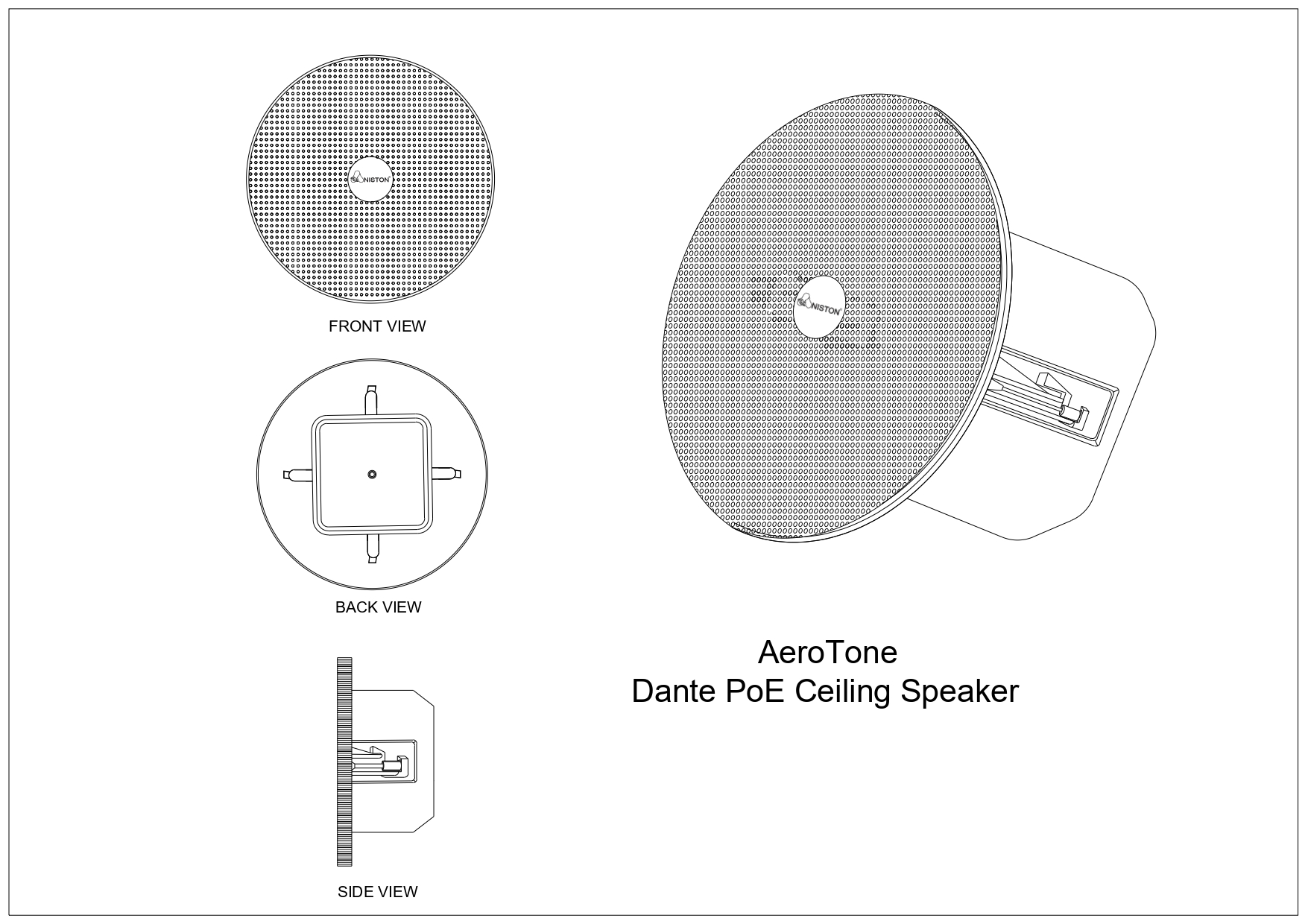

Product Dimension
Software & Downloads
Coming Soon
AeroTone Dante PoE Ceiling Speaker for Immersive Audio Experience

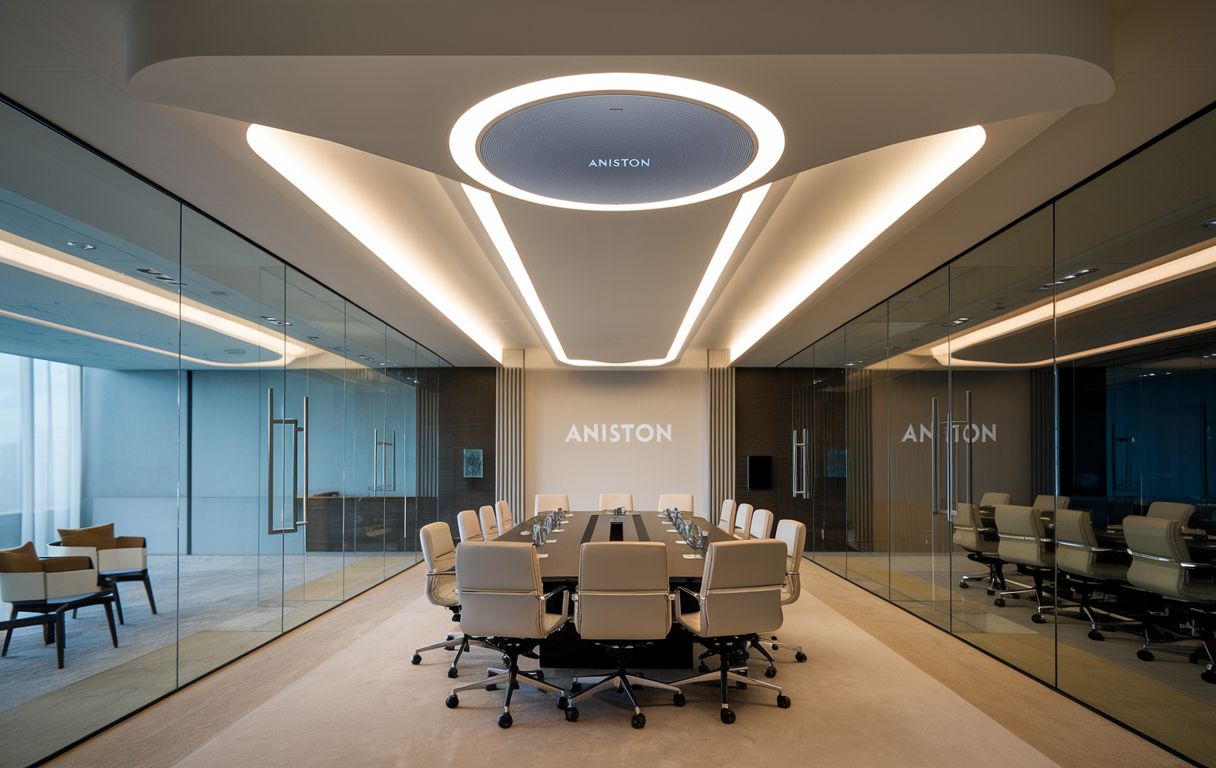

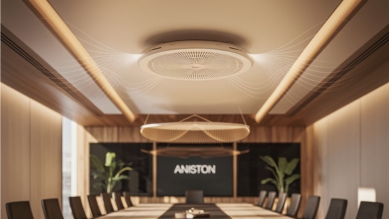

The AeroTone Dante PoE Ceiling Speaker is engineered to deliver exceptional audio performance for modern meeting spaces, conference rooms, and commercial environments. Designed for seamless ceiling integration, it provides powerful, high-fidelity sound while maintaining a clean and professional aesthetic.
Main Features
High-Quality Audio Performance
The AeroTone Ceiling Speaker delivers a wide frequency response of 65Hz – 20kHz with a peak SPL of 97dB, ensuring crisp, clear, and immersive sound for professional AV environments.

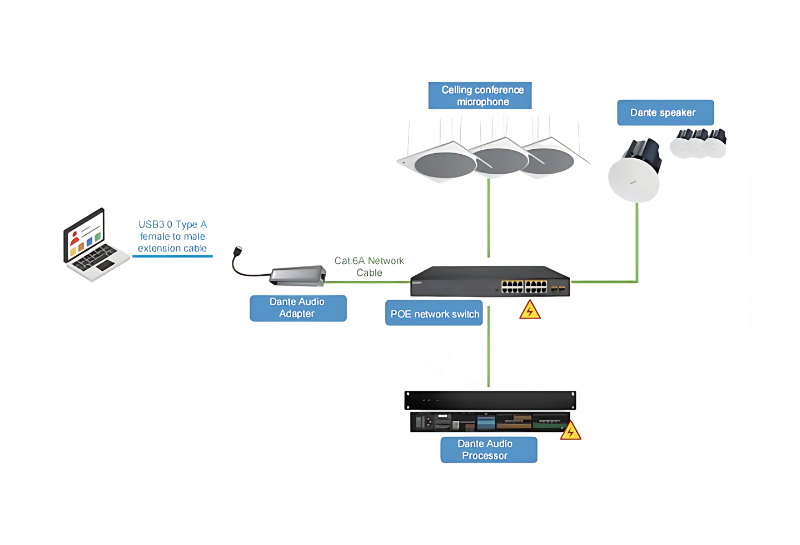

Dante & PoE Integration
Seamlessly integrates with Dante audio networks using a single RJ45 connection for both power (PoE/PoE+) and audio transmission, reducing cable clutter and simplifying installation.
Advanced DSP Processing
Equipped with built-in DSP functions including EQ, Enhancer, PEQ, Ducker (Noise Gate), Mixer, and Delay, optimizing sound clarity and performance for various acoustic environments.
Premium Audio Performance for Immersive Sound
The AeroTone Ceiling Speaker delivers high-fidelity audio with a wide frequency response of 65Hz – 20kHz, ensuring crystal-clear sound reproduction. Designed for seamless integration into professional AV environments, this Dante-enabled speaker provides exceptional clarity for conferencing, presentations, and background music.

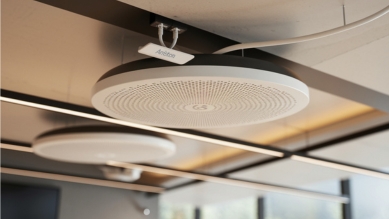

Effortless Dante & PoE Integration
The AeroTone Ceiling Speaker simplifies installation with a single RJ45 connection for both **power (PoE/PoE+) and audio transmission**, reducing cable clutter while ensuring **networked audio distribution**. Its robust Class-D amplifier and built-in DSP processing optimize sound quality, making it ideal for corporate boardrooms, lecture halls, and commercial applications.

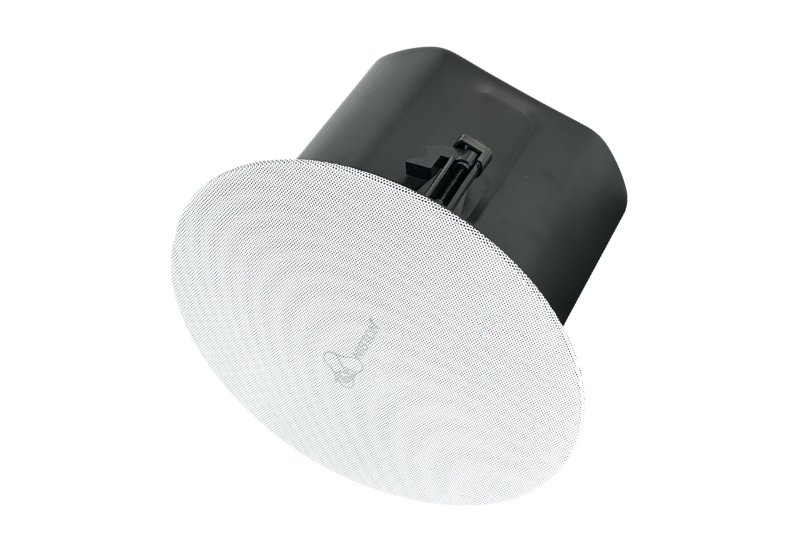

Seamless Audio Integration with AeroTone Dante PoE Speaker
Experience superior sound quality with the AeroTone Dante PoE Ceiling Speaker by ANISTON. Engineered for **modern conference rooms, boardrooms, and professional AV environments, this Dante-enabled ceiling speaker ensures evenly distributed, high-fidelity audio across the room. With Power over Ethernet (PoE/PoE+) support, installation is effortless—eliminating excess cabling while delivering both power and networked audio through a single RJ45 connection.
